Overview:

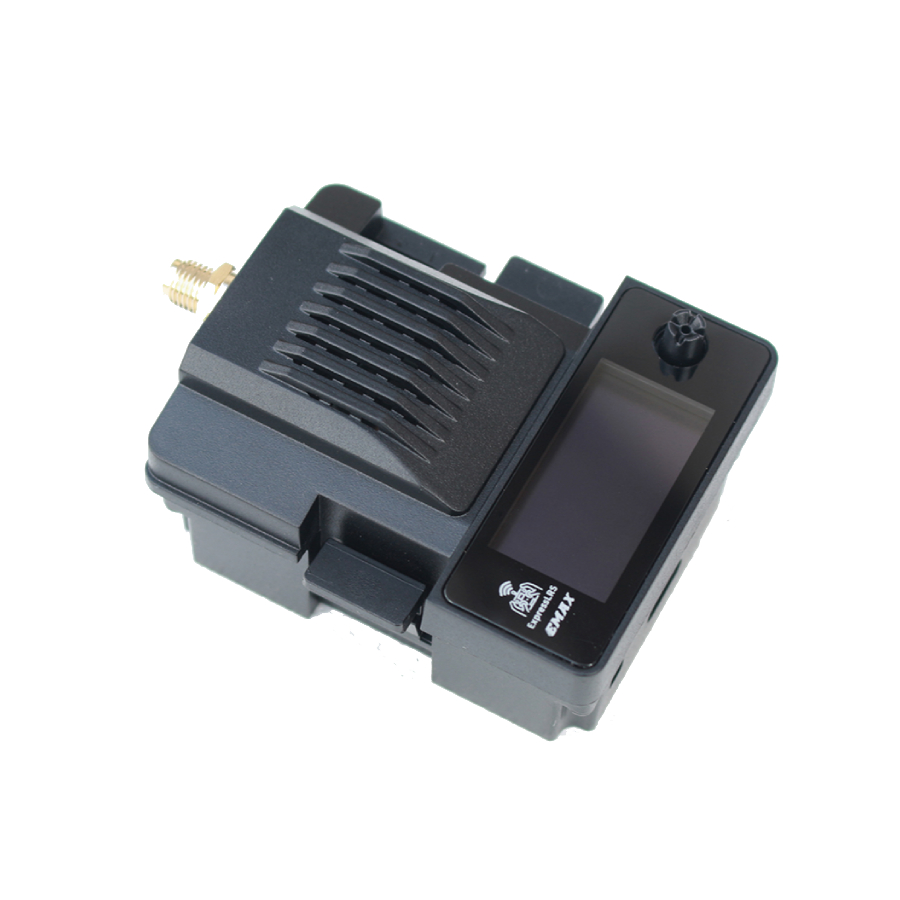

The EMAX Aeris Link is 2.4GHz ELRS Module capable of up to 500Hz packet rate and high mW output for long range. The full size module features an OLED display with joystick control to make the user experience much more friendly instead of needing to go through LUA scripts as with the Nano module. The module can accept external power from 2S-5S (2S recommended).
The Aeris Link Modules feature an RGB fan which lights up to show what current power settings are being used by the pilot, as well as give a unique aesthetic overall.
Unlike other ELRS modules the Aeris Link allows the use of higher voltage external batteries. We found that the most common battery used in external radio applications is a 3S so we ensured that 3S worked well as well as accepting both 4S and 5S batteries as many pilots have 4S XT30 batteries on hand already.
Specifications:
- Weight Approximately 59g (excluding antenna)
- Dimensions 72 x 63 x 35mm (excluding antenna)
- Screen Size 1.29 inches
- Screen Resolution 64*128
- Operating Frequency 2.4G Version: 2.4GHz ISM
- Output Power 10mW (default)
- 2.4G Version: Adjustable power levels of (25mW/50mW/100mW/250mW/500mW/1000mW)
- Refresh Rate 2.4G Version: 50hz, 100hz FULL, 150hz, 250hz, 333hz FULL, 500hz, D250hz, D500hz, F500hz, F1000hz

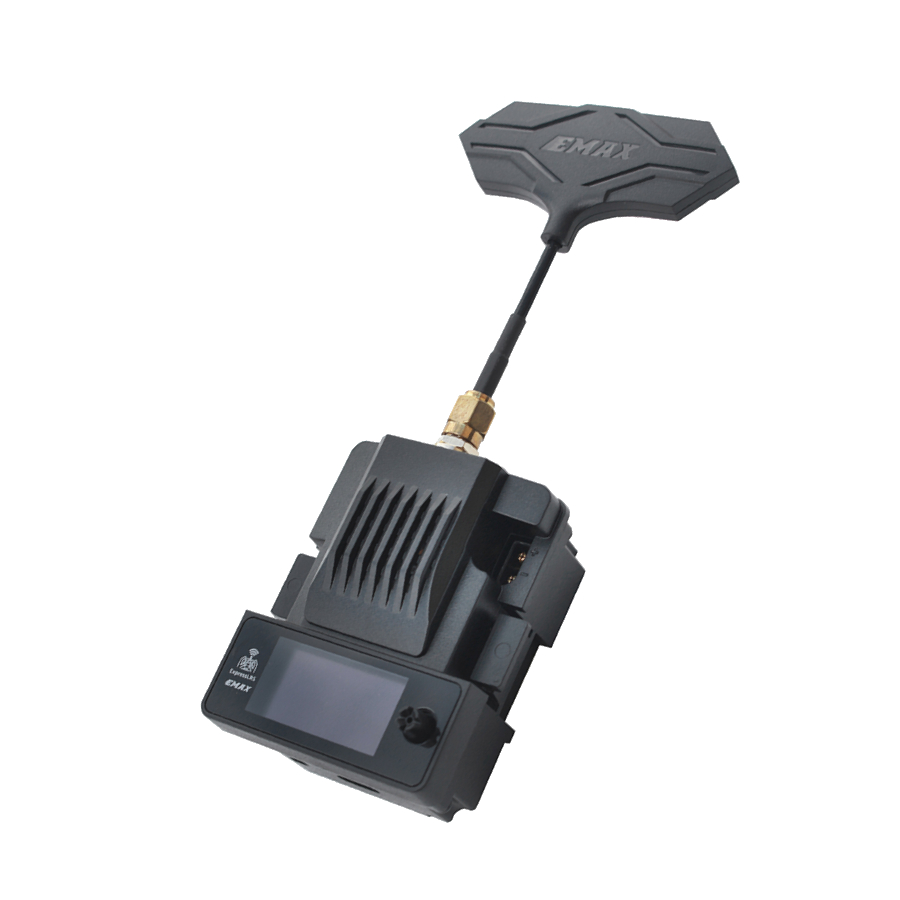

- Antenna 2.4G Version: Built-in gain T-shaped antenna, can also use other antennas with RP-SMA-J internal thread and female connector
- Configuration Supports Crossfire serial data protocol (CRSF) signal, compatible with OpenTX remote controllers.
- Interfaces Type-C Interface, JR Interface
- External Power XT30 Interface (supports voltage input of 5-21V, recommended to use 2S
(8.4V))
Includes:
- EMAX Aeirs Link 2.4GHz Module (Full JR Bay)
