Overview:

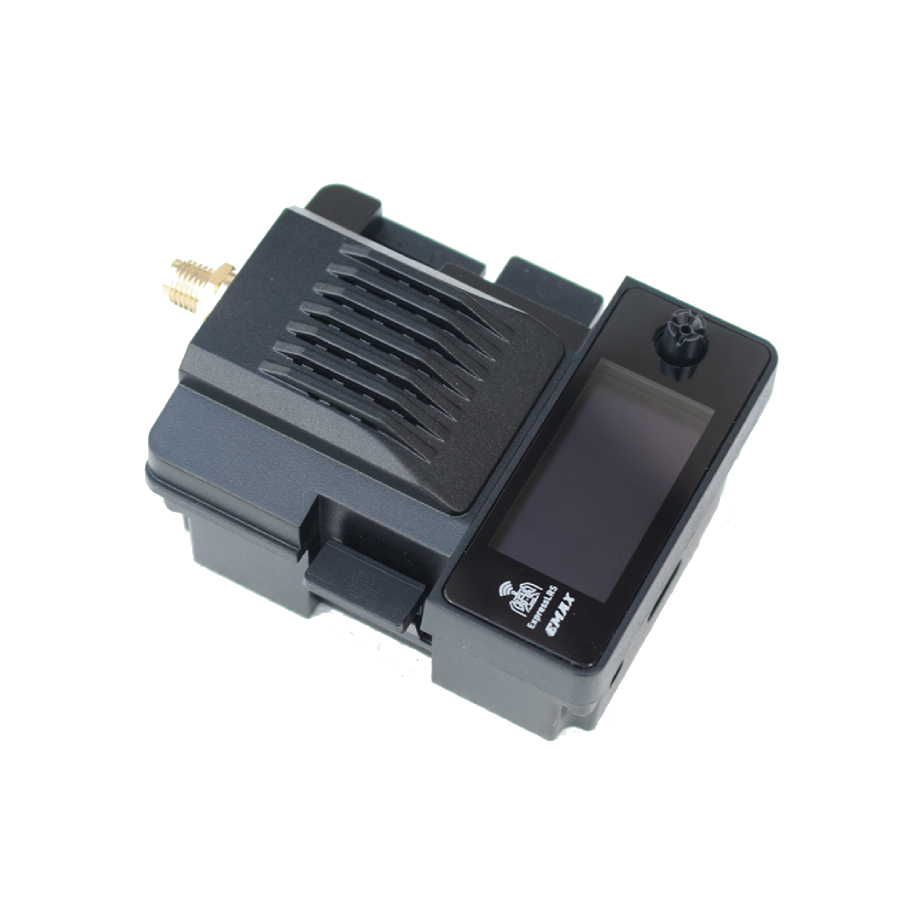

The EMAX Aeris Link is an 868MHz ELRS Module capable of up to 200Hz packet rate and high mW output for long range. The full size module features an OLED display with joystick control to make the user experience much more friendly instead of needing to go through LUA scripts as with the Nano module. The module can accept external power from 2S-5S (2S recommended).
The Aeris Link Modules feature an RGB fan which lights up to show what current power settings are being used by the pilot, as well as give a unique aesthetic overall.
Unlike other ELRS modules the Aeris Link allows the use of higher voltage external batteries. We found that the most common battery used in external radio applications is a 3S so we ensured that 3S worked well as well as accepting both 4S and 5S batteries as many pilots have 4S XT30 batteries on hand already.
Specifications:
- Weight Approximately 59g (excluding antenna)
- Dimensions 72 x 63 x 35mm (excluding antenna)
- Screen Size 1.29 inches
- Screen Resolution 64*128
- Operating Frequency 868MHz EU
- Output Power 10mW (default)
- 868MHz Version: 25mW/50mW/100mW/250mW/500mW/1000mW/2000mW
- Antenna: Built-in gain T-shaped antenna, can also use other antennas with SMA-J internal thread and male connector
- Configuration Supports Crossfire serial data protocol (CRSF) signal, compatible with OpenTX remote controllers.
- Interfaces Type-C Interface, JR Interface
- External Power XT30 Interface (supports voltage input of 5-21V, recommended to use 2S (8.4V))
Includes:
- EMAX Aeirs Link 868MHz Module (Full JR Bay)
