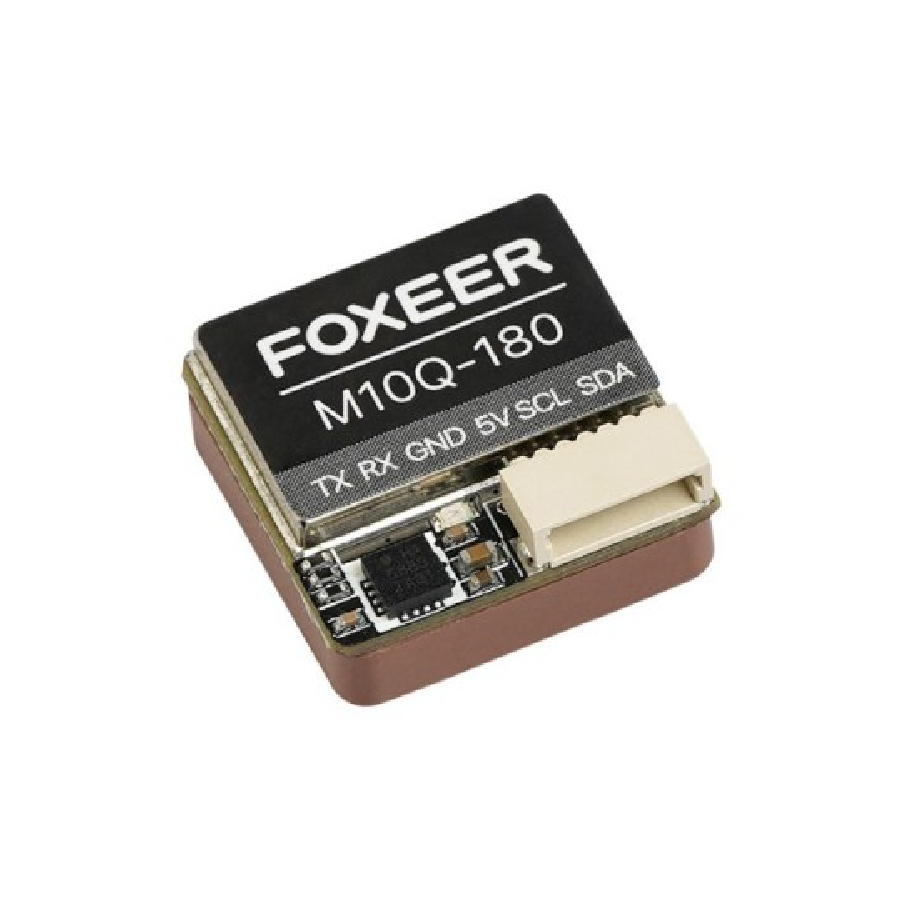

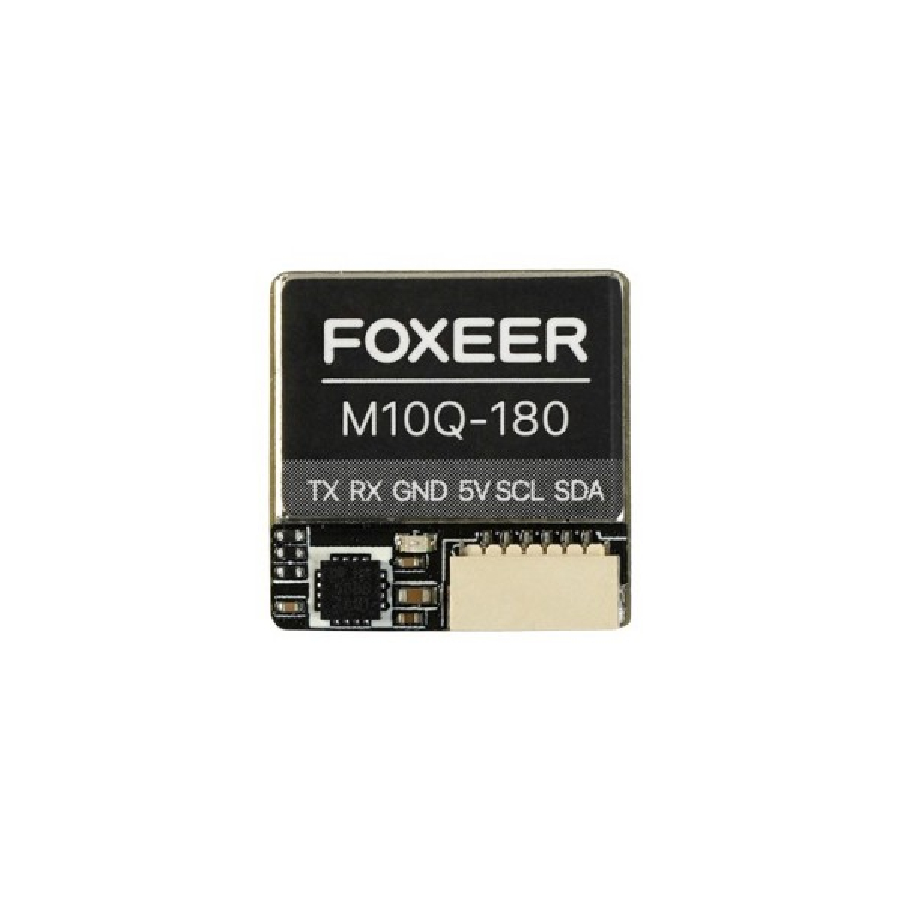

Foxeer M10Q 180 GPS / Compass

Overview:

The Foxeer M10Q 180 GPS 5883 Compass is a compact and lightweight module that features the latest 10th-generation U-Blox M10050 chip, which delivers exceptional performance and accuracy over 72 channels on GPS, GLONASS, BDS and GALILEO. It supports dual protocols NMEA and UBLOX, and has a built-in battery for hot starts and quick positioning. It also has a built-in QMC5883 compass sensor for precise orientation.

The foxeer 10Q 180 GPS 5883 Compass has a speed accuracy of 0.05m/s and a horizontal positioning accuracy of 1.5m (outdoor). It has a ceramic antenna for improved reception and a compact size of 18x18x8mm, weighing only 7.5g.

Specifications:

- Chip: M10(10th Generation Chip)
- Frequency: GPS L1 GLONASS L1 BDS B1 GALILEO ESBAS L1 QZSS L1
- Input Voltage: 5V
- Antenna: Ceramic Antenna
- Channel: 72
- Battery: Built-in
- Compass: QMC5883
- Compass Orientation: Plug facing direction of flight and obviously antenna up, BF: CW 180° Flip
- Baud Rate: 115200bps
- Protocol: Dual NMEA/UBLOX
- Output Frequency: 1Hz-10Hz,10Hz default
- Speed Accuracy: 0.05m/s
- Horizontal Positioning Accuracy: 2D ACC1.5m(outdoor)
- Receiver Sensitivity: Trace -166dBm; Capture -160dBm
- Dynamic Characteristics: Height 50000m; Speed 500m/s; Acceleration 4G
- Operating Temperature: -40C-+85C
- Storage temperature: -40C-+105C
- Weight:7.5g
- Size: 18*18*8mm

Included:

- Foxeer M10Q 180 GPS / Compass
- Accessories
