FrSky TANDEM X20R Transmitter

Overview:

The FrSky Tandem X20R Series is a dual-band telemetry radio system similar to the X20. The changes made on the X20R are to bring the design closer to that of the PRO version which eliminates the need for an additional grip cover and allowing the bottom part to be fully grasped by the palm for a more comfortable and relaxed grip. The Lite module bay has been adjusted to accomodate more external modules. The R module also features 2 extra trims to allow for more precise tuning during operation. The Sliver levers on both sides of the transmitter support adjusting the centre position. Most of the switches and caps have been changed to metal. The X20R also features an upgraded robus antenna handle design and external antenna connectors for future expansion.

The X20R features a powerful and reliable TD dual-band RF system, which features the advantages of the FrSky 868MHz and 2.4GHz in one combined RF system. The TD dual-band RF system is characterized by true simultaneous dual-band remote control with telemetry, and superb end-to-end 4ms latency performance. When combined with ETHOS, a completely new operating system, FrSky’s Tandem X20R Series provides users with a powerful, intuitive, and flexible experience to enjoy across the entire world of RC.

Features:
- Built-in TD-ISRM RS Dual-Band Internal RF Module
- 900M/2.4G Dual Band TD Mode
– Dual 2.4G TW Mode
– ACCESS 2.4G & ACCESS R9 Modes
– 2.4G ACCST D16 Mode
- Further Improvements for Form Factor Design
- Super Low-Latency and Long-Range Control with Telemetry
- Upgraded Robust Antenna Handle
- 900M/2.4G External Antenna Connectors (LoRa mode)
- 800×480 Resolution Outdoor High Brightness Touchscreen
- 2 Angle Adjustable Slider Levers
- 2 Knobs, 4 Standard Trims with 2 Extra Trims
- 6 Quick-Mode Custom Buttons (Front) and 2 Momentary Buttons (Rear)
- All Knobs, Trims, and Central Linear-Slider with All-CNC Metal Caps
- Built-in 8GB Flash Drive Storage
- Digital Audio Power Amplifier
- Built-in 6-axis Gyroscope Sensor
- High-Speed PARA Wireless Training System
- Data Transmission & Recharge System via USB Type-C Interface
- Haptic Vibration Alerts and Voice Speech Outputs
- M20 High-Precision 4 Ball-Bearing Hall-Sensor Gimbals with Metal Panel

Specifications:
- Dimension: 205*213*90mm (L*W*H)
- Weight: 892g(Battery Excl.) / 1024g(Battery Incl.)
- Operating System: ETHOS
- Internal RF module: TD-ISRM RS
- Number of Channels: Up to 24
- Built-in Flash Storage: 8GB
- Operating Voltage Range: 6.5 ~ 8.4V (2S Li-battery)
- Operating Temperature: -10°C~60°C (14°F~140°F)
- Operating Current: 600mA@7.4V (typ.)
- Charging Current: ≤1A ±200mA
- Recharge System for 2S Li-ion Battery (USB Type-C Interface)
- USB Adaptor Voltage: 5V+0.2V
- USB Adaptor Current: >2.0A
- Backlit Touchable LCD Resolution: 800*480
- Compatibility: ACCST D16 & ACCESS & TD & TW receivers
- Lite Type External Module Bay

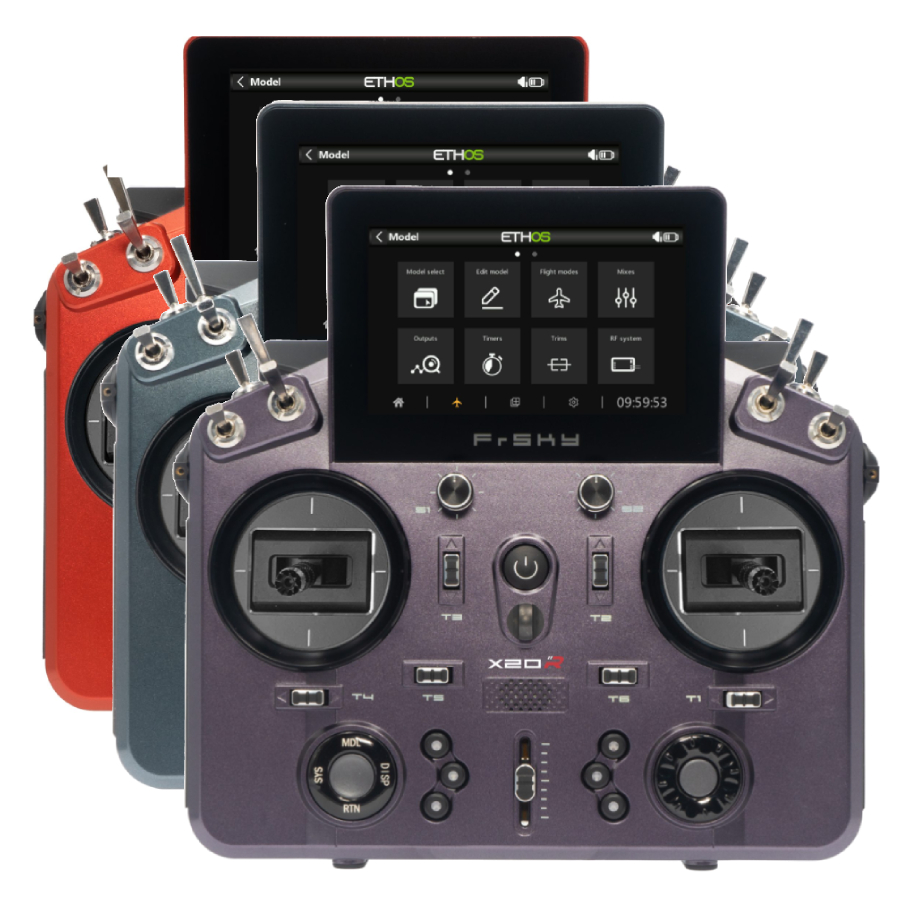

Available Versions (See below for purchase options):
Slate Grey
Cherry Red
Blackish Green

Includes:
- FrSky Tandem X20R Mode 2 (Throttle on left) (See Below for versions available)
- Battery
- SD Card
