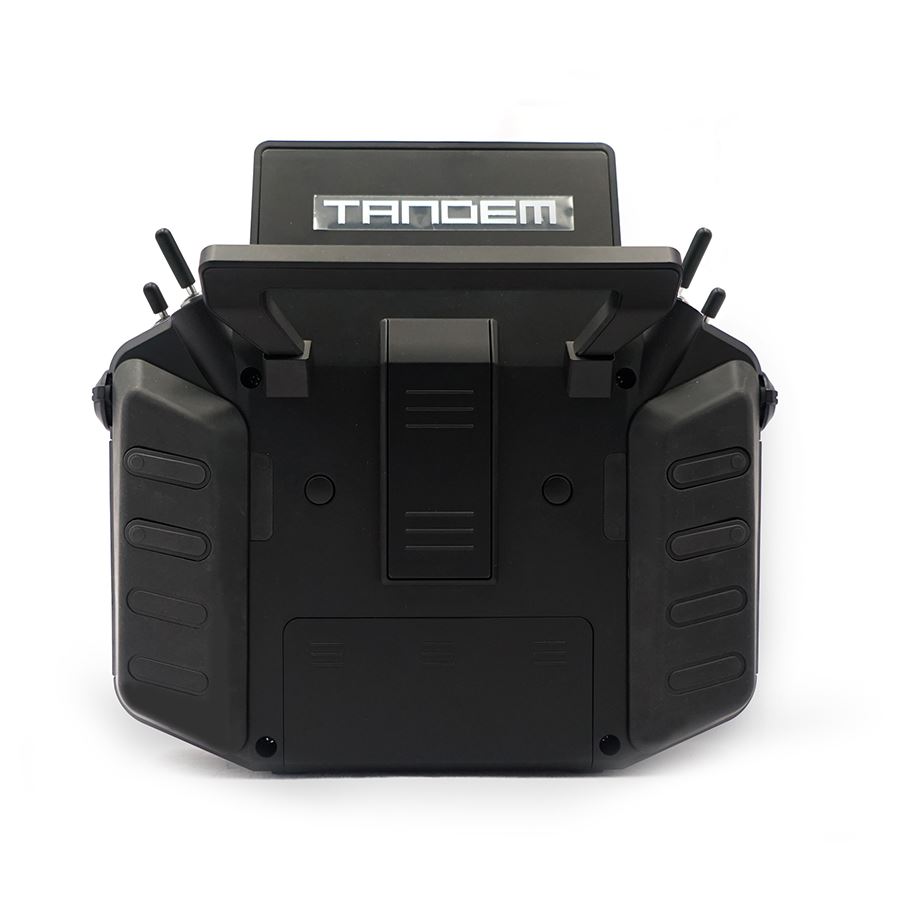

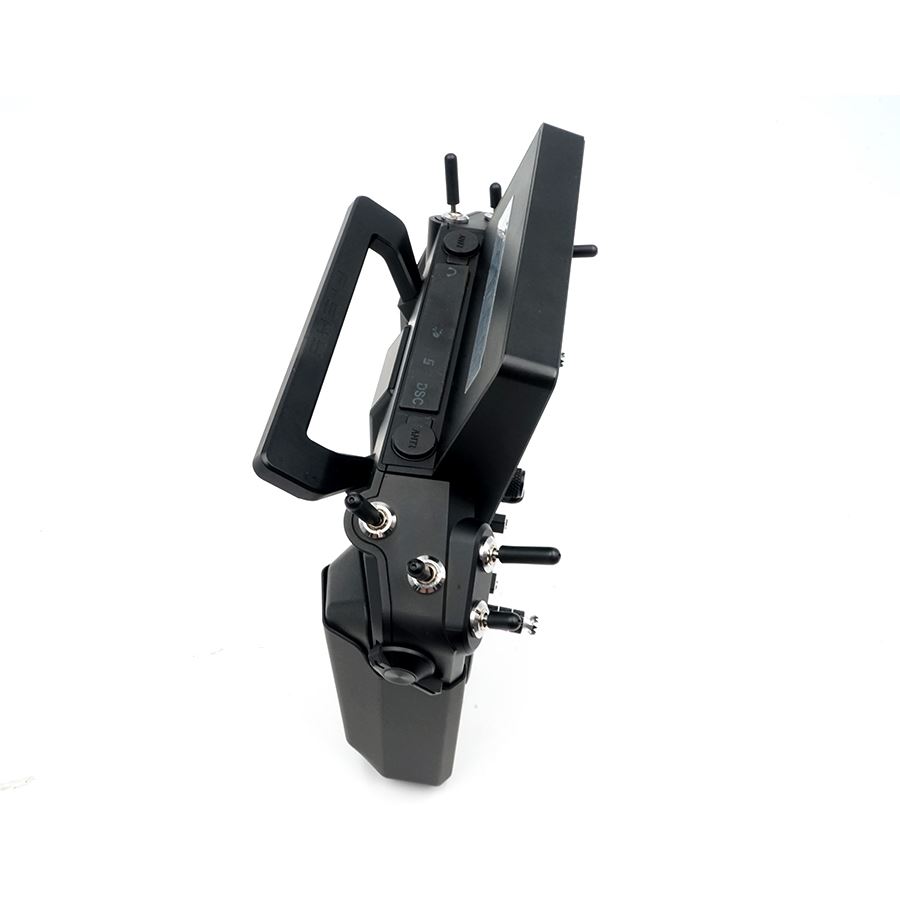

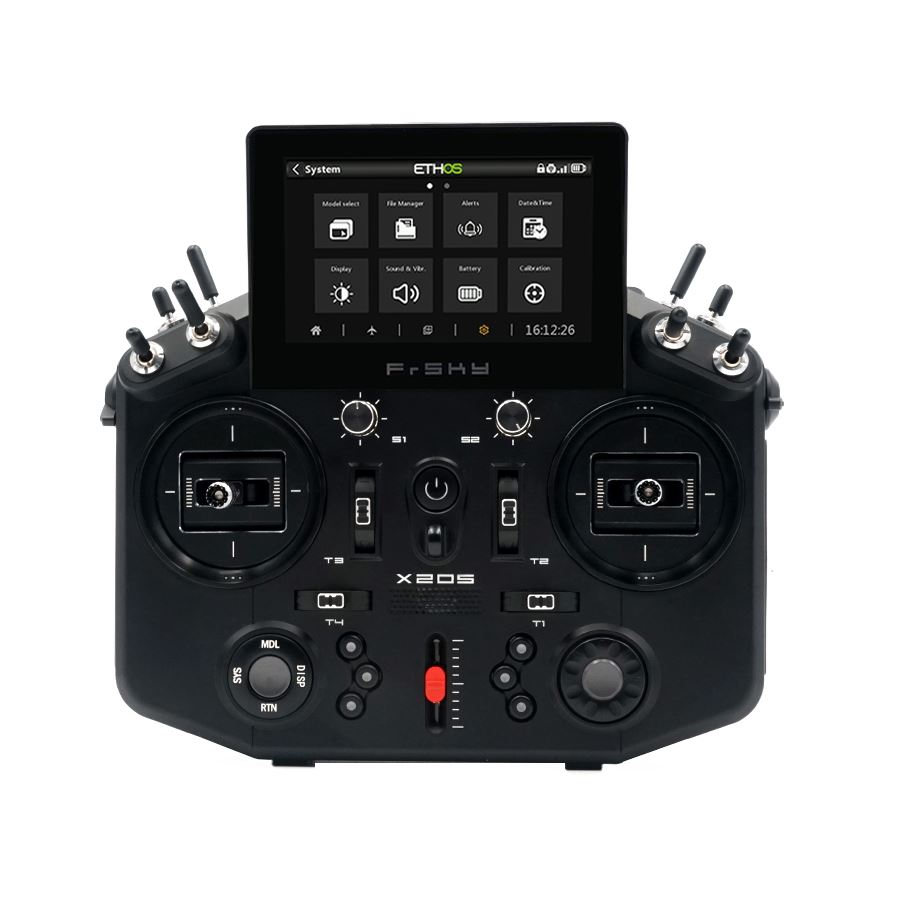

FrSky TANDEM X20S Transmitter

Overview:

The FrSky Tandem X20S Series is a dual-band telemetry radio system featuring high precision CNC hall sensor gimbals. The X20S' development has drawn on valuable feedback from FrSky’s extensive customer base, experience with previous radios and introduces many new features such as a color touch screen display, underpinned by an ergonomic design that provides unprecedented comfort when held. On the RF side, FrSky has introduced a powerful and reliable TD dual-band RF system, which features the advantages of the FrSky 868MHz and 2.4GHz in one combined RF system. The TD dual-band RF system is characterized by true simultaneous dual-band remote control with telemetry, and superb end-to-end 4ms latency performance. When combined with ETHOS, a completely new operating system, FrSky’s Tandem X20 Series provides users with a powerful, intuitive, and flexible experience to enjoy across the entire world of RC.

** This radio only supports EU LBT V2 D16 & ACCESS modes so won't work with quads like the Tinyhawk that needs D8 mode. If in doubt please call and speak to us to check compatibility **

Features:

- Built-in TD 900M/2.4G Dual-Band Internal RF Module Supports Multiple Working Modes (868MHz in EU)
- 2.4G ACCST V2 D16 Mode (Compatible with ACCST Receivers with D16 V2 or later FW)
- 2.4G ACCESS Mode (Compatible with ACCESS Receivers)
- 900M ACCESS Mode (Compatible with ACCESS R9 868/915MHz Receivers)
- (*Capable of simultaneous working under ACCESS mode)
- 2.4G & 900M TD Mode (Compatible with TD Receivers)
- Super-low latency and long-range control with telemetry
- (*Up to 50 to 100KM range and down to 4ms end-to-end latency)
- 800*480 Color Touch-Screen Displays
- 6 Quick-Mode Custom Buttons (Front) and 2 Momentary Buttons (Rear)
- Lite Type External Module Bay
- Built-in 6-axis Gyroscope Sensor
- All CNC Metal Trims, Knobs
- Haptic Vibration Alerts and Voice Speech Outputs
- Supports SWR Indicator Warning
- Supports Recharge System for 2S Li-ion Battery (USB Type-C Interface)
- High-speed PARA Wireless Training System (Compatible with FreeLink App3.0)
- Built-in Audio Wireless Module (Compatible with Bluetooth Audio Device)
- All CNC High-Precision Hall-Sensor Gimbals with 10 Ball-Bearing
- Adjustable 45° / 60° stick travel
- 8° rotatable panel
- ETHOS: The more powerful, Flexible and Intuitive OS for your radio.
- Clear and Intuitive UI Design
- Supports Dual Operation Modes of Radio Display (Touch and Non-Touch)
- Supports Multi-Language Switching
- Hardware/Software Version and Factory Version Detection
- Supports running LUA Scripts

Specifications:

- Dimension: 212*200*95 mm (L*W*H)
- Weight: 809g (without battery)
- Operating system: ETHOS
- Internal RF module: TANDEM
- Number of Channels: 16/24 channels
- Operating Voltage Range: 6.5 ~ 8.4V (2S Li-battery) ** Battery Included **
- Operating Temperature: -10°C~60°C(14°F~140°F)
- Operating Current: 240mA@7.4V (typ.)
- Charging Current: ≤1A ±200mA
- USB Adaptor Voltage: 5V+0.2V
- USB Adaptor Current: >2.0A
- Backlit touchable LCD resolution: 800*480
- Compatibility: ACCST D16 ACCST V2 & ACCESS & TD receivers

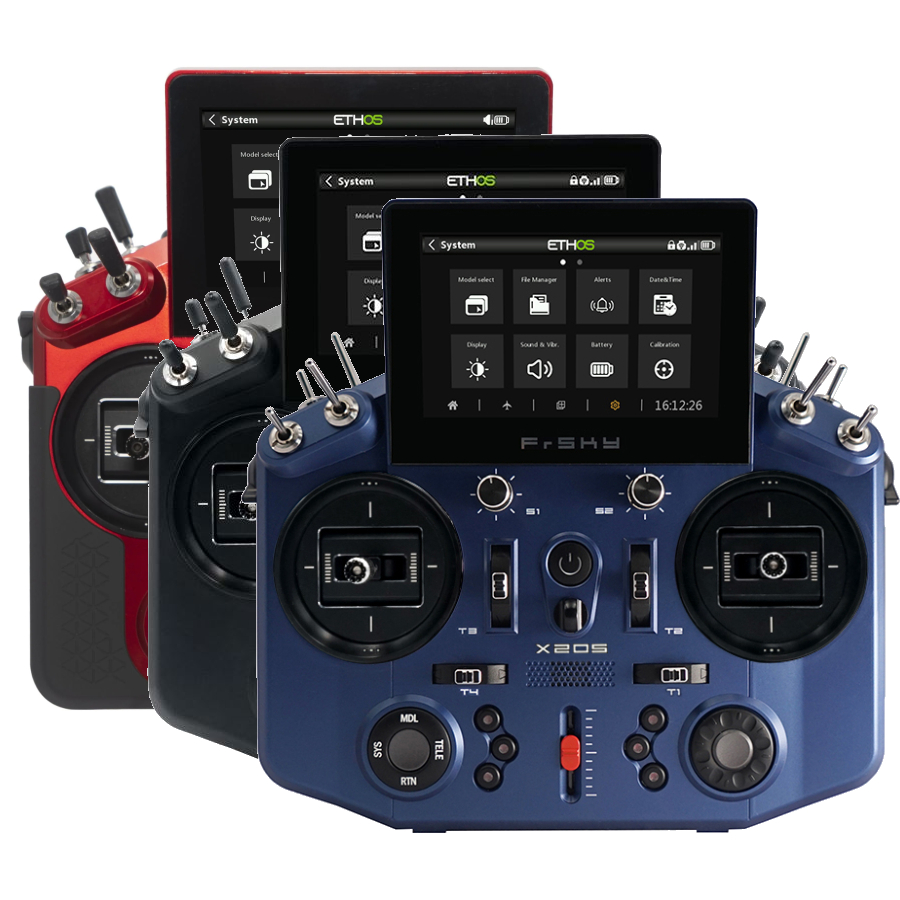

Available Versions (See below for purchase options):
Black
Blue
Cardinal Red

Includes:

- FrSky Tandem X20S Mode 2 (Throttle on left) (See Below for versions available)
- Battery
- SD Card

PLEASE NOTE: These radios now ship with EU LBT V2 Firmware supporting ACCESS & D16 Mode

** We are an authorised FRSKY Dealer **
