Overview:

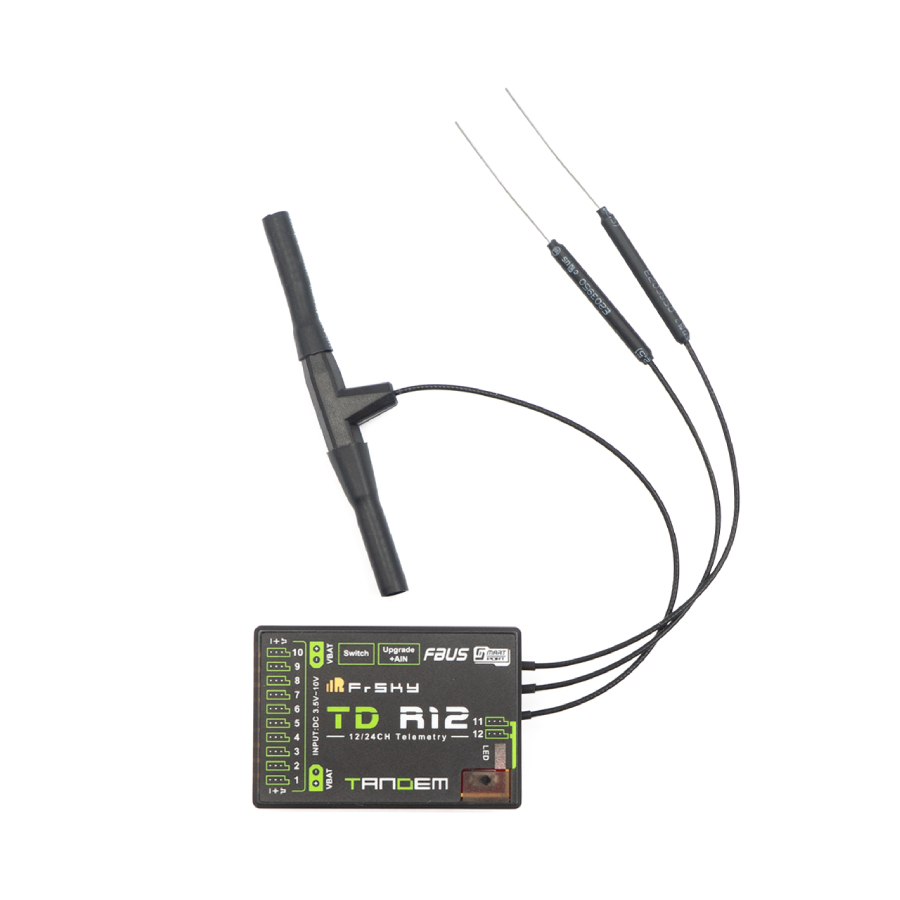

The FrSky Tandem TD R12 12 Channel dual-band receivers are unlike any other FrSky 2.4Ghz or 900Mhz receivers, they work simultaneously at both 900Mhz and 2.4Ghz frequencies. That means Tandem receivers provide not only the low latency signal and long range control, also benefits from enhanced level of high reliability and anti-interference performance.
The Tandem series receivers adopt the triple antenna design that provides multi-directional wide coverage for the remote signal. The 900Mhz antenna is a newly designed small form factor, but has the equivalent high-performance as with previous 900mhz antennas.
The configurable 12 channel ports are a big feature of TD R10, each channel port can be assigned as PWM, SBUS, FBUS, or S.Port. With the FBUS protocol, the Tandem series receivers can open up the possibility of seamlessly pairing with multiple telemetry devices (Neuron ESC, Advance Sensors, etc.) as well as simplifying the builds setup.
Features:
- Simultaneous working dual-band TD mode
- Triple antenna design for multi-directional coverage
- Black Box function
- Built-in voltage sensor
- Built-in Power Switch Function | Match with Different External Switches (Optional Extra - Not included)
- 4ms Race Mode with Telemetry
- Long control range (up to 50KM – 100KM)
- Over-The-Air (OTA) FW update
- Supply current range（every single port）
- Instantaneous current:5A
- Continuous current:3A
12 Configurable Channel Ports
- CP1: PWM / SBUS Out / FBUS / S.Port / SBUS In
- CP2-12: PWM / SBUS Out / FBUS / S.Port
Specifications:
- Frequency: 900MHz & 2.4GHz
- Dimension: 48.5*33*17.9mm (L*W*H)
- Weight: 23g
- Operating Voltage: 3.5-10V (Recommend 2S Li Batteries)
- Operating Current: ≤170mA
- Continuous Current: ≤20A (power the device) | Instaneous Current: ≤40A (power the device)
- Voltage Measurement Range via AIN (External device): 0-35V (Battery Voltage Divider Ratio: 1:10)
- Compatibility: Tandem series radio & TD protocol capable RF module
- Dual XT30 Power Input Connector
- Triple Antenna Design (2×2.4G & 1×900M antennas)
Includes:
1x FrSky TD R12 12Ch Dual Band Receiver
