Overview:

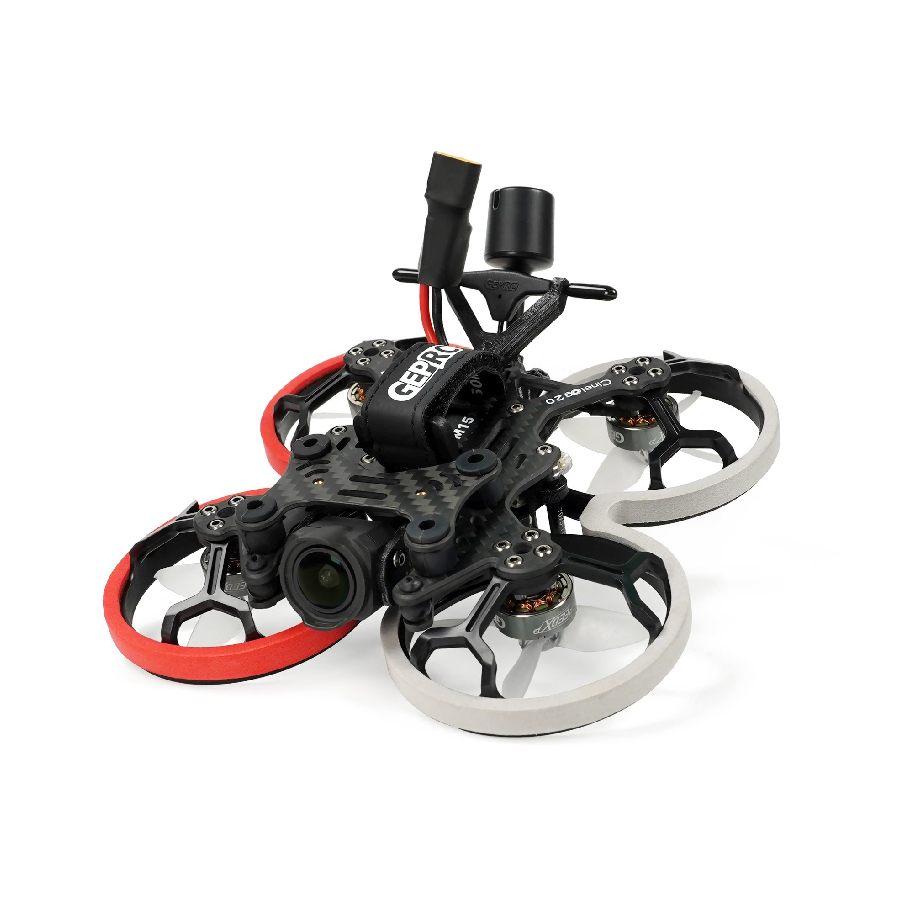

The GEPRC CineLog 20 (DJI O3 edition) is designed for the shooting needs of complex indoor environments. GEPRC has recently released the 2 inch Cinewhoop CineLog20.
The CineLog20 continues the CineLog series with a lightweight pusher design, and the redesigned camera gimbal vibration reduction solution provides an excellent mounting platform for O3 AIR Unit shooting, which can achieve excellent anti-shake effect. The O3 AIR Unit version can shoot 4K 120fps video without mounting any camera. It is lighter in weight and has a longer battery life.
It adopts GEPRC SPEEDX2 1303.5 5500KV motor and GEP-F411-35A AIO. Equipped with Emax 4-blade propellers, reasonable and efficient power system makes the CineLog20 very quiet and has a long battery life, making your flight and shooting more assured. Using the one-piece injection molding camera mount, you can quickly mount GEPRC naked GoPro 8/9/10/11 cameras, Action2, insta360 Go2, Peanut and other light and small action cameras.
Features:
- Designed to mount a shock-absorbing gimbal under the independent FPV camera to reduce jello of FPV Goggles image and including a strong anti-vibration design effect.
- 2 inch pusher design, small size and lightweight, more suitable for complex and narrow environments flight shooting.
- SPEEDX2 1303.5 5500KV motor with Emax four-blade propellers makes the flight smooth.
- The GEPRC Team’s splendid tuning and the overall flight feel delicate and flexible.
Specifications:
- Model: CineLog20 HD O3
- Frame: GEP-CL20
- Wheelbase: 100mm
- Gimbal plate: 2.0mm
- Top plate: 2.5mm
- Bottom plate: 1.5mm
- FC system: GEP-F411-35A AIO
- MCU: STM32F411CEU6
- Gyro: ICM 42688-P
- OSD: Betaflight OSD w/AT7456E chip
- ESC: 8Bit 35A
- VTX: O3 AIR Unit
- Camera: O3 Camera
- Antenna: 5.8G&2.4G
- Motor: GR1303.5 5500KV
- Propeller: EMAX Avan Micro 2×2.4×4
- Weight: 140g
- Recommended battery: LIHV 4S 450mah-660mah
- Flight time:4-6min
Available Versions (See below for purchase options):
PNP Version:
- No receiver included. Add your own supporting SBUS or Serial connection e.g Crossfire, FrSky, ELRS
ELRS Version:
- ELRS - ELRS UART based receiver included
Includes:
- GEPRC CineLog20 HD DJI O3 (See below for versions available)
- Accessories
