Overview:

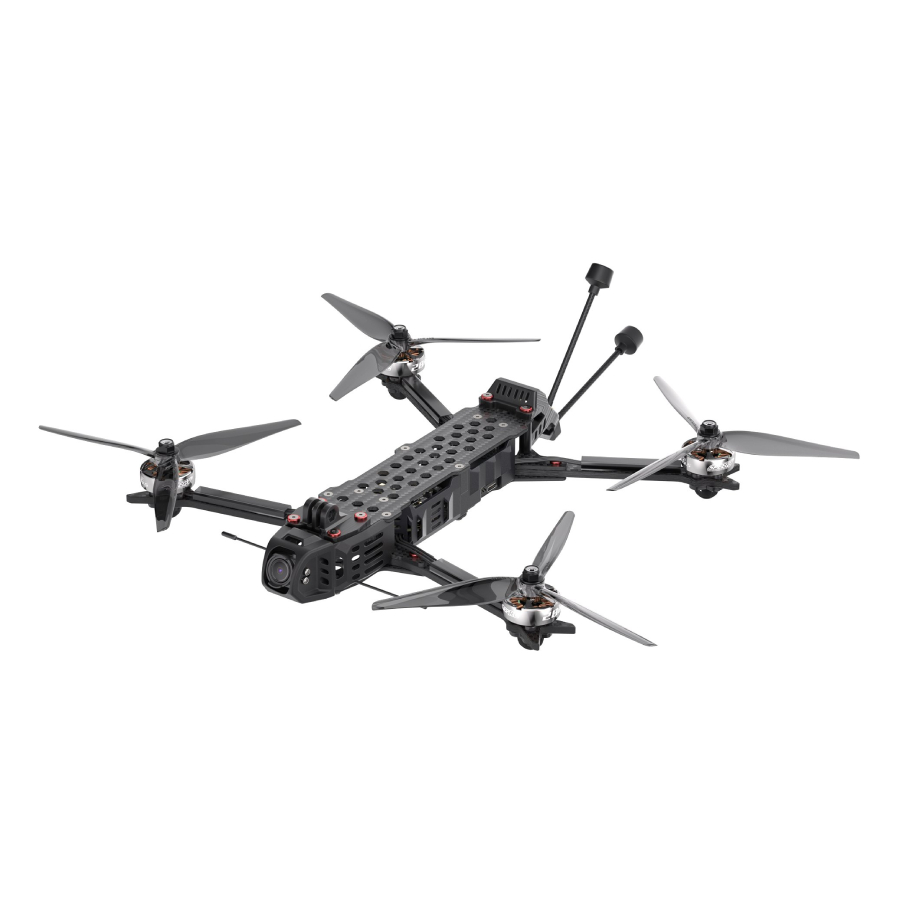

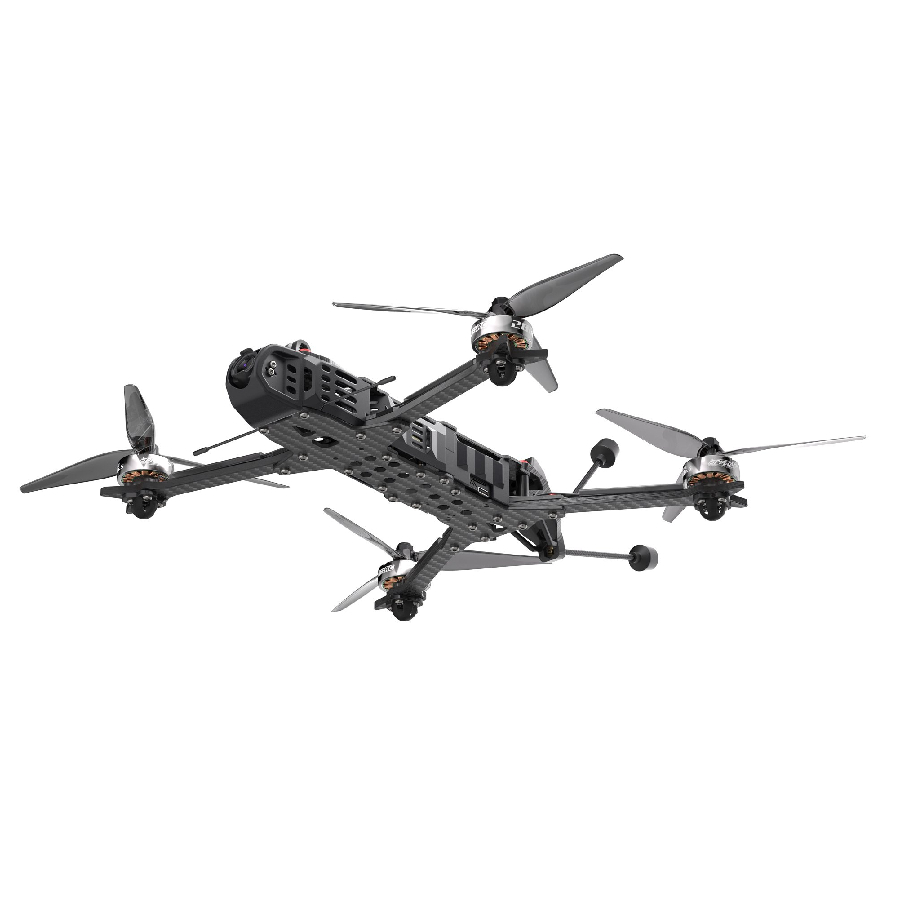

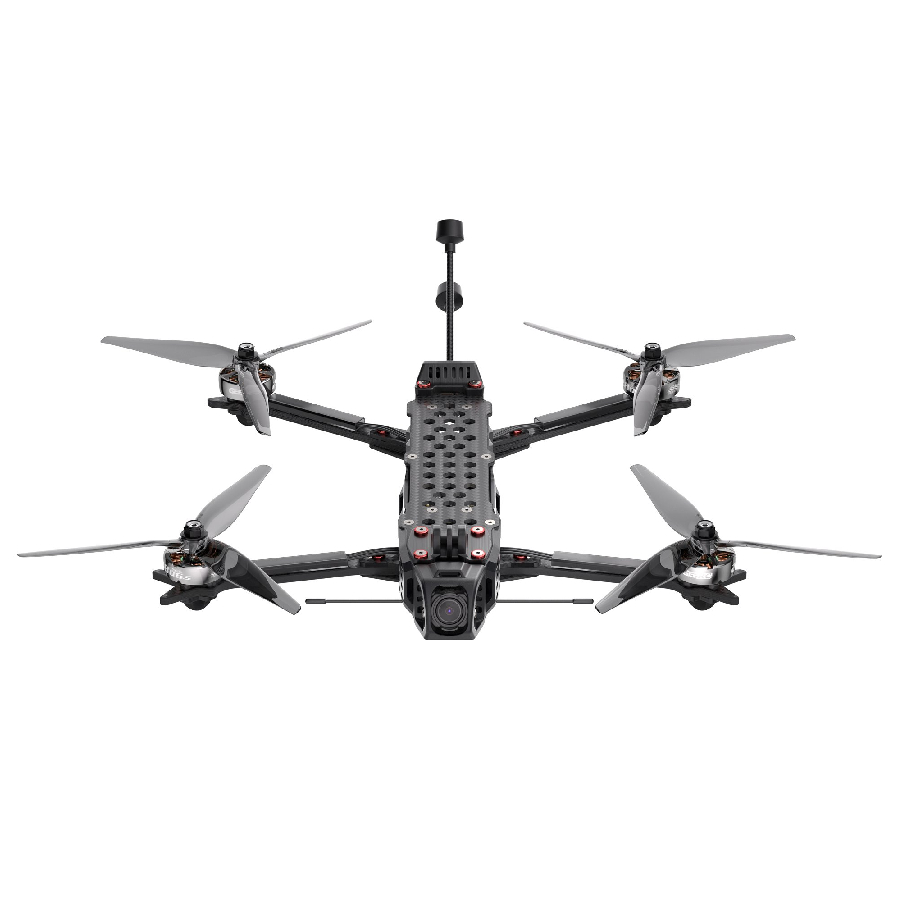

The GEPRC Crocodile75 V3 is a long range 7 inch FPV quad with built in Analogue FPV.
The appearance of the Crocodile75 V3 adopts a novel design, the overall structure is strengthened to effectively reduce the vibration of the fuselage and make the flight experience smoother and more stable.
The battery plug is integrated with the fuselage for convenient application. The power is upgraded with SPAN G50A BLHeli_32 4IN1 ESC and 2806.5 1350KV motor, sufficient power. In terms of flight energy consumption, save power and efficiency.
The overall performance of Crocodile75 V3 has been carefully and strictly tuned by the GEPRC team to bring the most passionate flying experience for pilots.
This version is the Crocodile75 with Analogue FPV version.
Features:
- Adopt a novel appearance design, strengthen the fuselage structure, and reduce the impact of fuselage vibration on the gyroscope sampling data.
- Equipped with SPEEDX2 2806.5 1350KV motor and HQ7.5×3.7×3 with sufficient power and high efficiency.
- Upgrade the ESC to SPAN G50A BLHeli_32 4IN1.
- Add protective side panels to effectively protect the electronic control system from instability caused by sand and dust pollution
- The integrated design of the battery plug and the body simplifies the power-on operation, simplicity and beauty.
- The Crocodile75 V3 has a lengthier fuselage, can be mounted with Lipo 6S 3300mah-4500mah or Lion 6S 6000mah battery for flight.
- Perfect match for 7-inch or 7.5-inch propellers
FC Specifications:
- Model: Crocodile75 V3 Analogue
- Frame: GEP-LC75 V3
- Wheelbase: 342mm
- Top plate: 2.5mm
- Bottom plate: 3.0mm
- Arm plate: 6.0mm
- Splint plate: 2.5mm
- FC: SPAN F722-BT-HD V2
- ESC: SPAN G50A BLHeli_32 4IN1
- MCU: STM32F722RET6
- Gyro: ICM 42688-P
- OSD: Betaflight OSD w/AT7456E chip
- VTX: GEPRC RAD VTX
- Camera: Caddx Ratel 2
- GPS: GEP-M8U
- Antenna: Momoda 5.8G LHCP SMA x2
- Motor: SPEEDX2 2806.5 1350KV
- Propeller: HQProp7.5×3.7×3
- Weight: 615g
Recommended battery: Lipo 6S 2600mah-4200mah / Lion 6S 6000mah
Flight time: 12-30 min
Available Versions (See below for purchase options):
PNP Version:
- No receiver included. Add your own supporting SBUS or Serial connection e.g Crossfire, FrSky, ELRS.
ELRS Version:
- ELRS - ELRS UART based receiver included
Includes:
- GEPRC Crocodile75 V3 Analogue (See below for versions available)
- Accessories
