Overview:

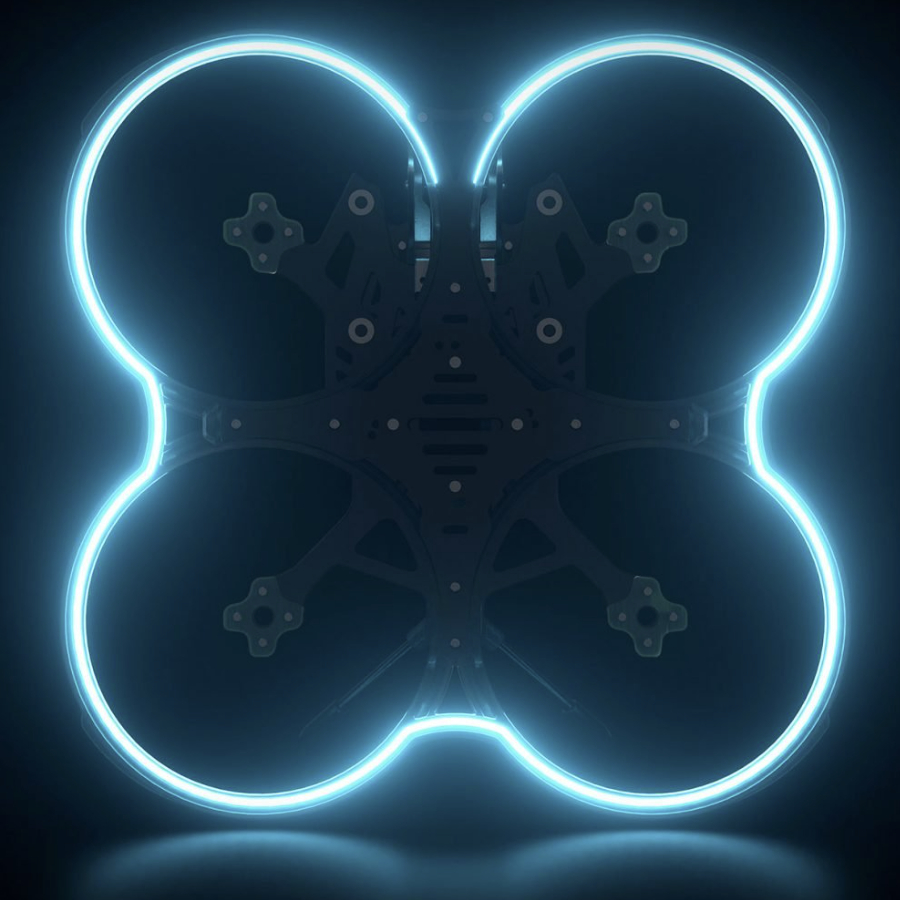

The GEP-CT30 O3 frame specially developed by GEPRC team for cinematic enthusiasts and compatibility with the DJI O3 Air Unit & Camera.
The newly polished gimbal damping module can easily fix high-frequency vibration and jello issues. It can be mounted with multiple brands of action camera. Included is a TPU soft mount method designed for O3 camera, which helps prevent the camera IMU vibration. The GEP-CT30 O3 frame supports the installation of mainstream AIO flight controllers with 25.5mmx25.5mm mounting holes, and is compatible with various VTX mounting holes on the market such as 20mmx20mm/25.5mmx25.5mm. With 12mm x 12mm motor mounting holes, can be installed with larger 15-18-20 series motors, with strong power output with 3-inch propeller. Ultra-light fuselage weight for more confident flying.
This version includes a Blue COB LED light strip and BEC for an amazing effect in low light.
Features:
- Design that combines engineering and aesthetics.
- Quick-disassembly design, only need to remove 6 screws to upgrade or replace parts.
- Selected high-toughness and impact-resistant PC +PET material for injection molding.
- Aviation 7075-T aluminum alloy camera mounting bracket and fuselage aluminum column.
- Propeller guard embedded ring Cob light strip, carefully tuned light effect. Color brightness in the day and night can be clearly displayed.
- The newly developed gimbal shock absorption structure can disintegrate high frequency jitter and jello effect. Easily carry a variety of action cameras.
- Compatible with a variety of fpv system with the program, choose to belong to your first-person view.
Specifications:
- Brand: GEPRC
- Model: GEP-CT30 O3
- Motor to Motor: 127mm
- Isolation Plate: 2.0mm
- Main Plate: 3.0mm
- Bottom Plate: 1.5mm
- FC Mounting Hole: 25.5mm x 25.5mm
- VTX Mounting Hole: 20mm x 20mm /25.5 x 25.5
- Motor Mounting Hole: 12mm x 12mm
- FPV Camera Spacing : 20mm
- Suitable Propeller Size: 3 inch propeller
- Weight: 107.3g (with LED strip)
Includes:
- 1x GEPRC GEP-CT30 O3 Frame With COB LEDs
