GEPRC M1025 GPS Module

Overview:

The GEPRC GPS series product line has been fully upgraded. The GEP-M1025 series of GPS products based on u-blox M10050 chip and using 25*25mm antenna are now launched.

The GEP-M1025 series GPS positioning module uses u-blox’s M10 chip solution and supports GPS+BDS+Galileo+QZSS+SBAS joint positioning, up to 32 satellites. 25*25mm ceramic antenna provides better reception capabilities. Built-in Flash chip and Farad capacitor can save configuration parameters and quickly hot start.

Optional QMC5883L/IST8310 magnetometer and DPS310/MS5611 barometer. A variety of matching solutions provide accurate azimuth pointing and sensitive altitude change data. It can meet the needs of most FPV quadcopters , multi-rotor, fixed wing and other model products.

Note: The direction of the magnetometer in INAV should be set to QMC5883: CW 0° flip, IST8310: CW 90° flip.

Features:

- U-blox M10 series chip
- Fast GPS lock speed
- GPS+BDS+Galileo+QZSS+SBAS joint positioning
- Up to 32 satellites

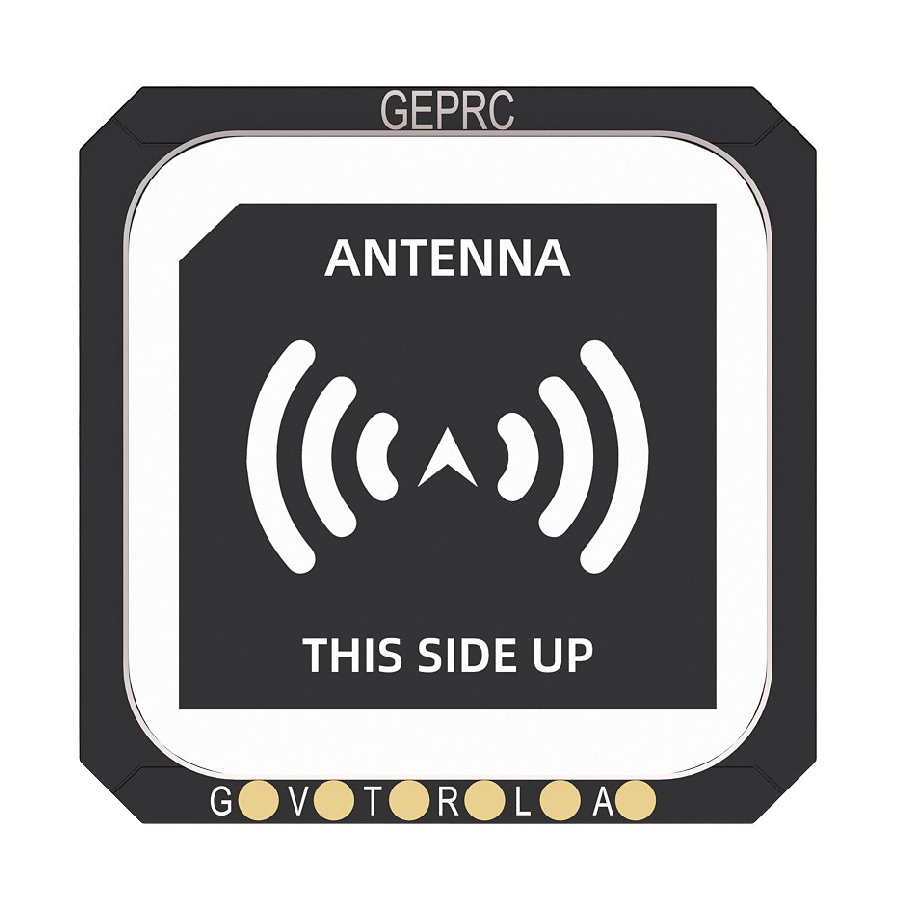

- 25x25mm antenna for better signal performance
- Stable connection quality
- Unique appearance design
- Small size and light weight
- Built-in Flash chip and Farad capacitor
- Onboard indicator light, easy to use

Available Versions (See below for purchase options):

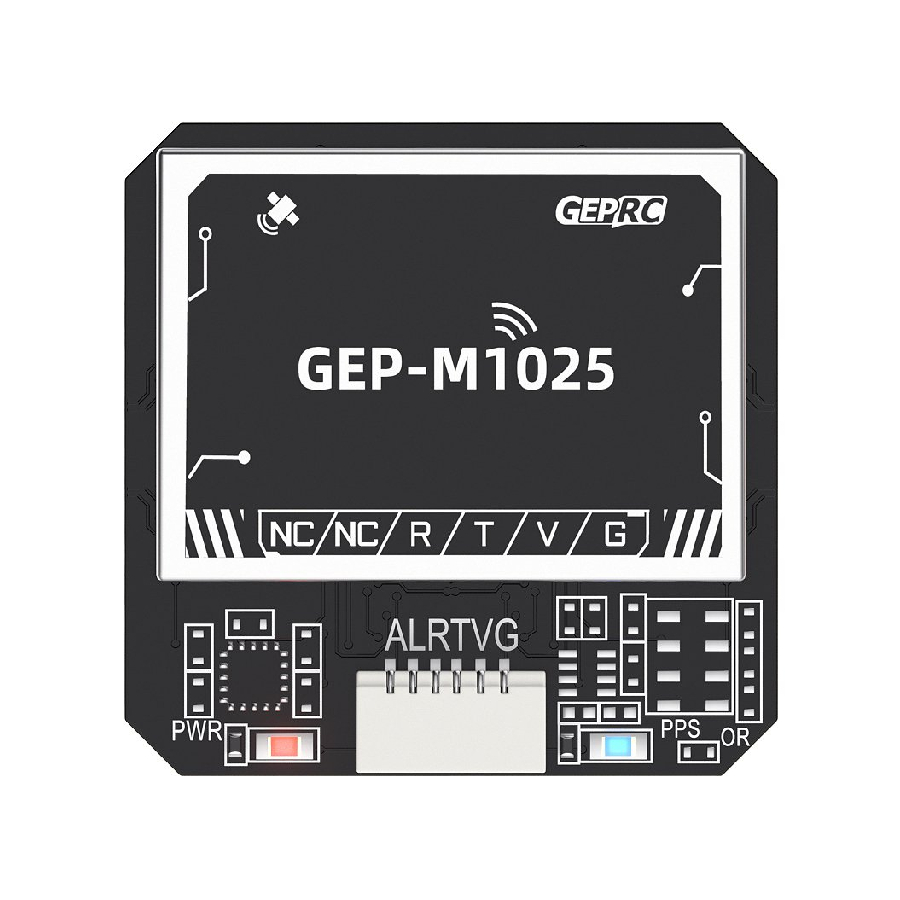

M1025: - GPS Module Only

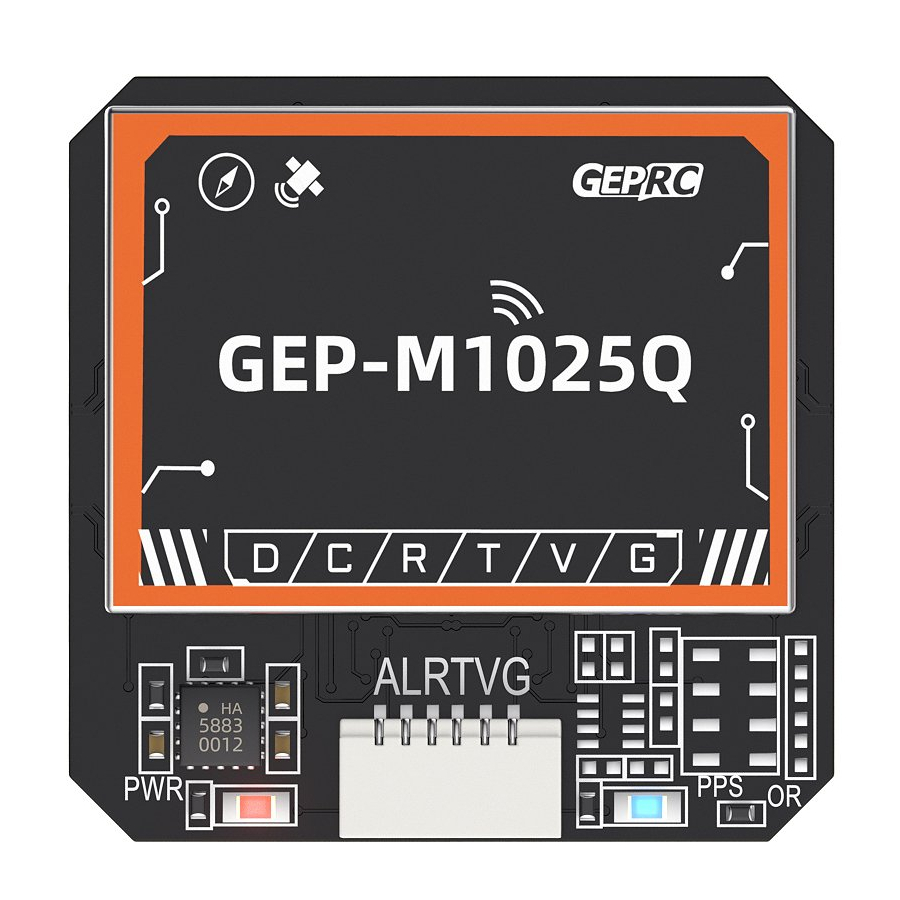

M1025Q: -  GPS & QMC5883L Magnetometer

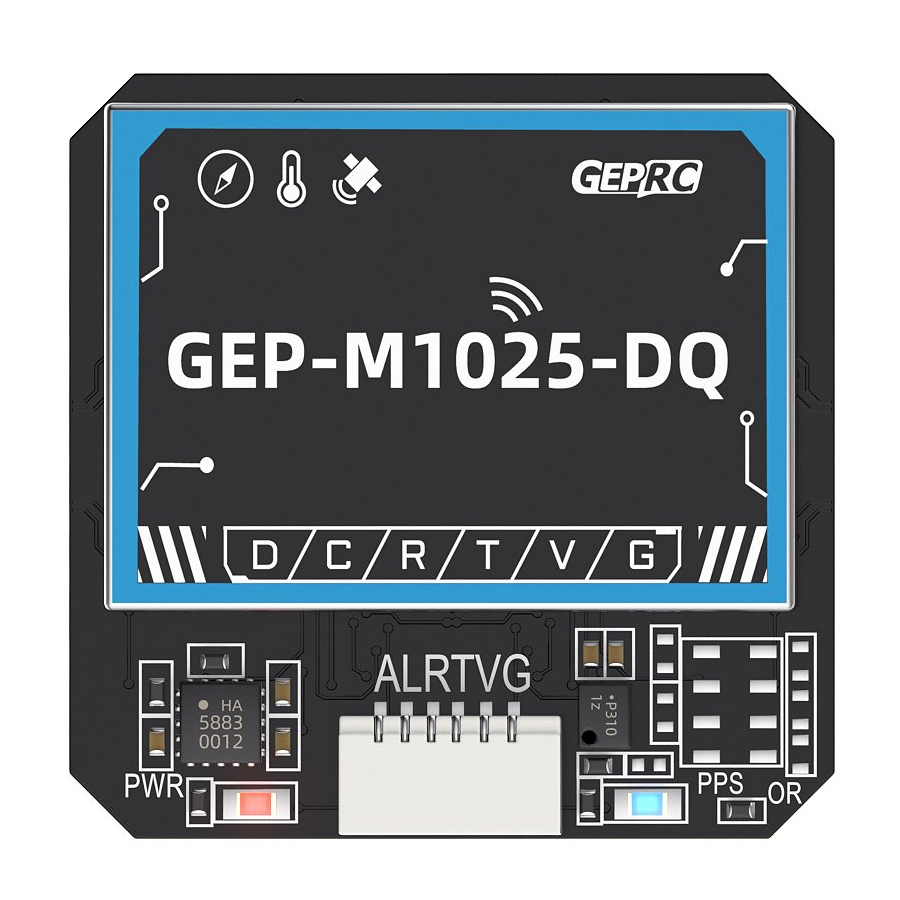

M1025-DQ: - GPS, QMC5883L Magnetometer, DPS310 Barometer

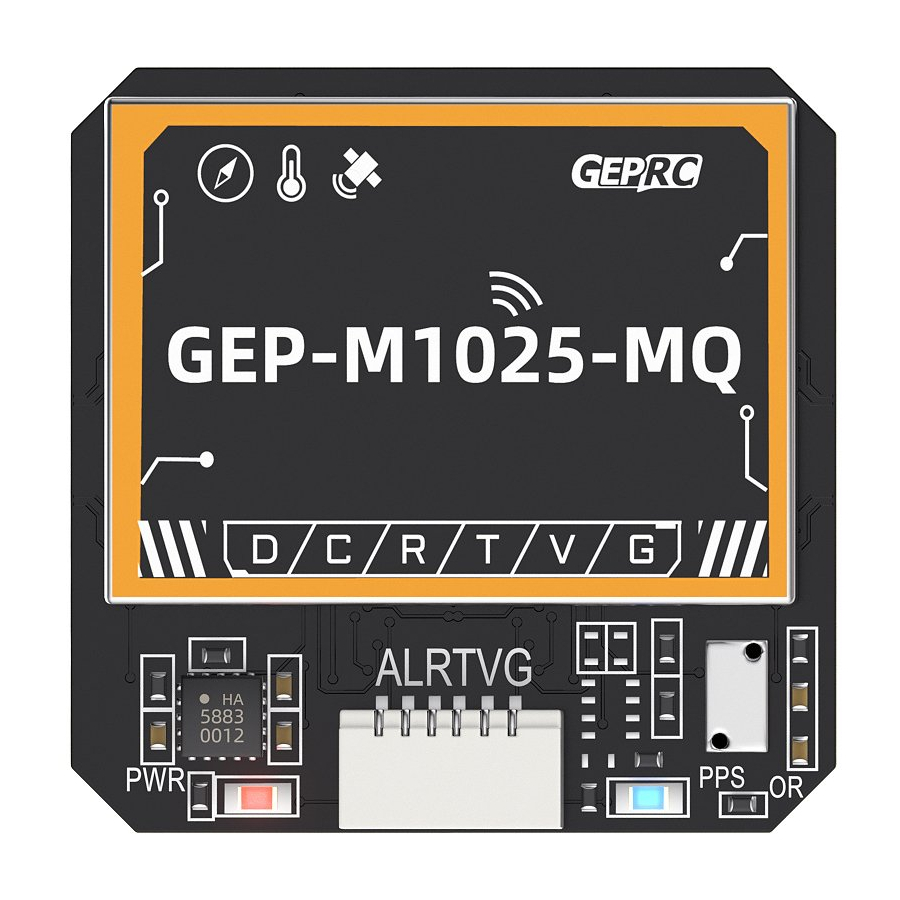

M1025-MQ: - GPS, QMC5883L Magnetometer, MS5611 Barometer

Includes:

- GEPRC M1025 GPS Module (See below for versions available)
- Accessories
