Overview:
The GEPRC RAD MINI VTX is the latest 1W high-power VTX developed by GEPRC. It has 4 adjustable power levels and a maximum power of 1000mW, with a stable transmission signal, suitable for short and medium-range flight to ensure image transmission quality.

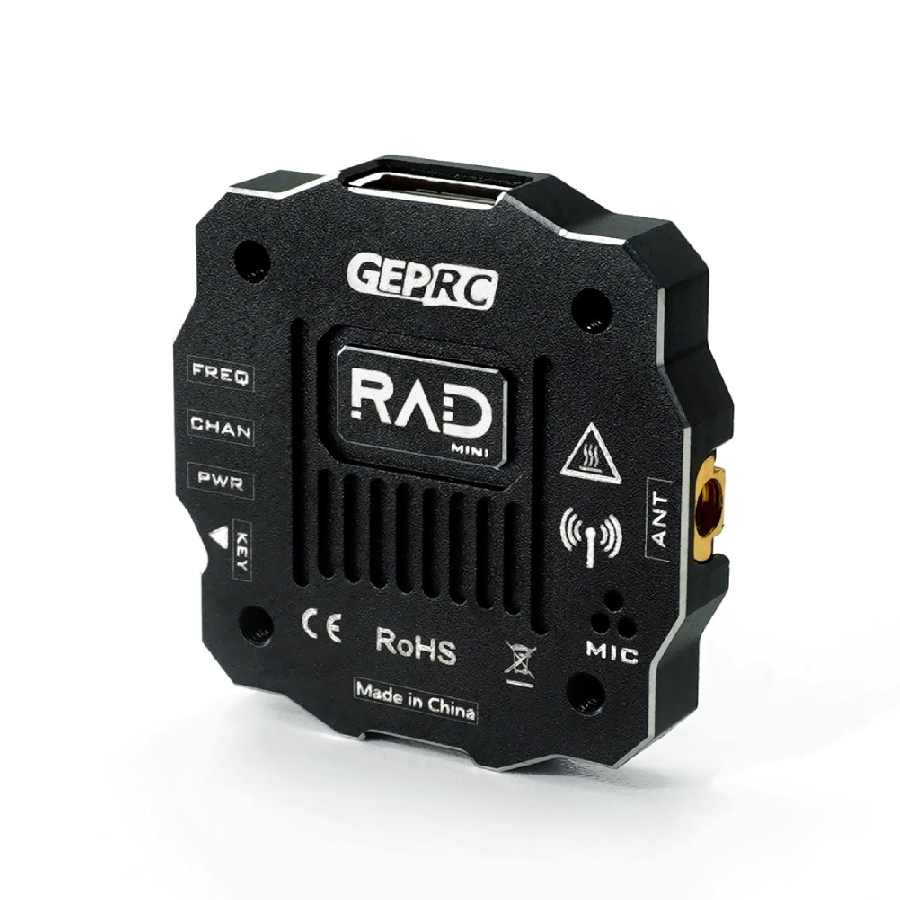

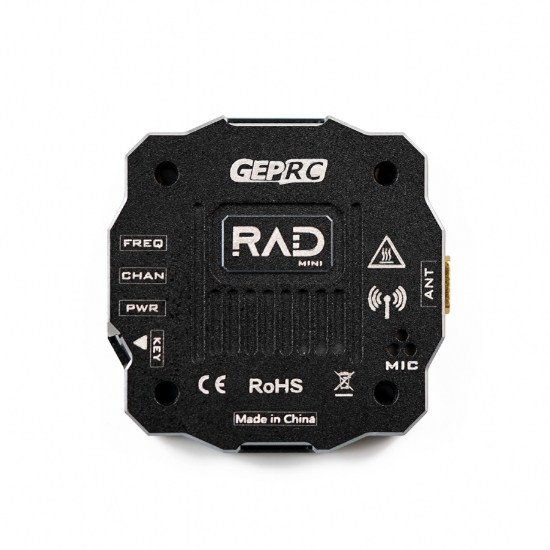

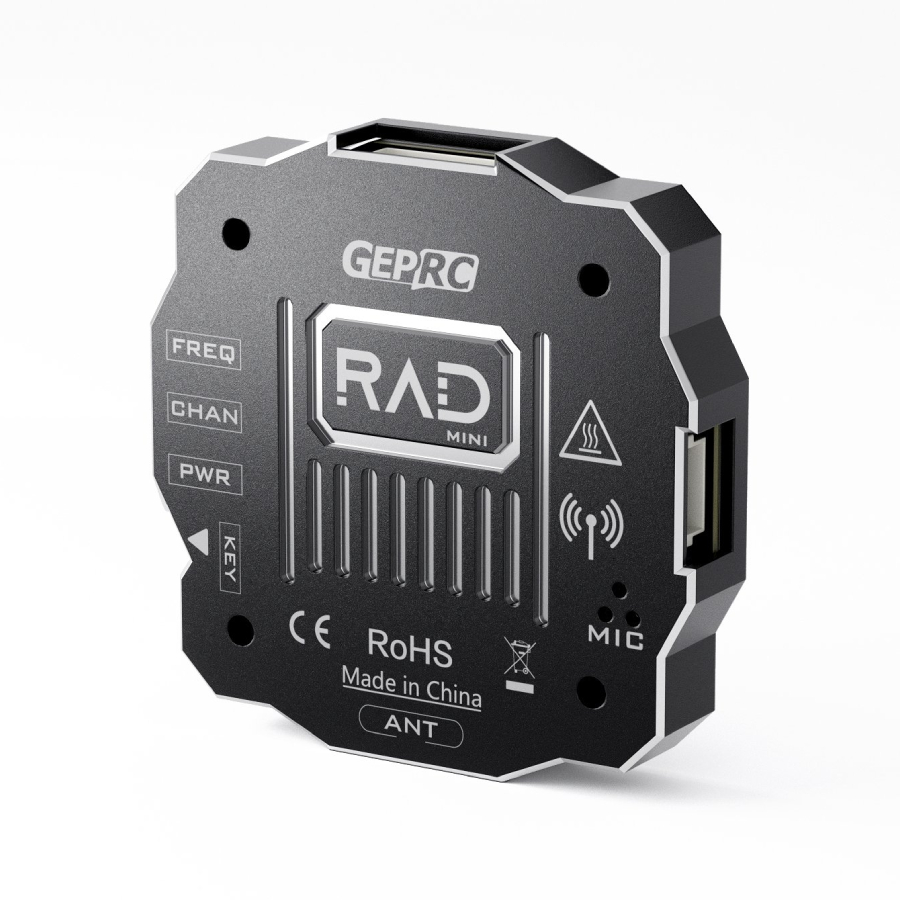

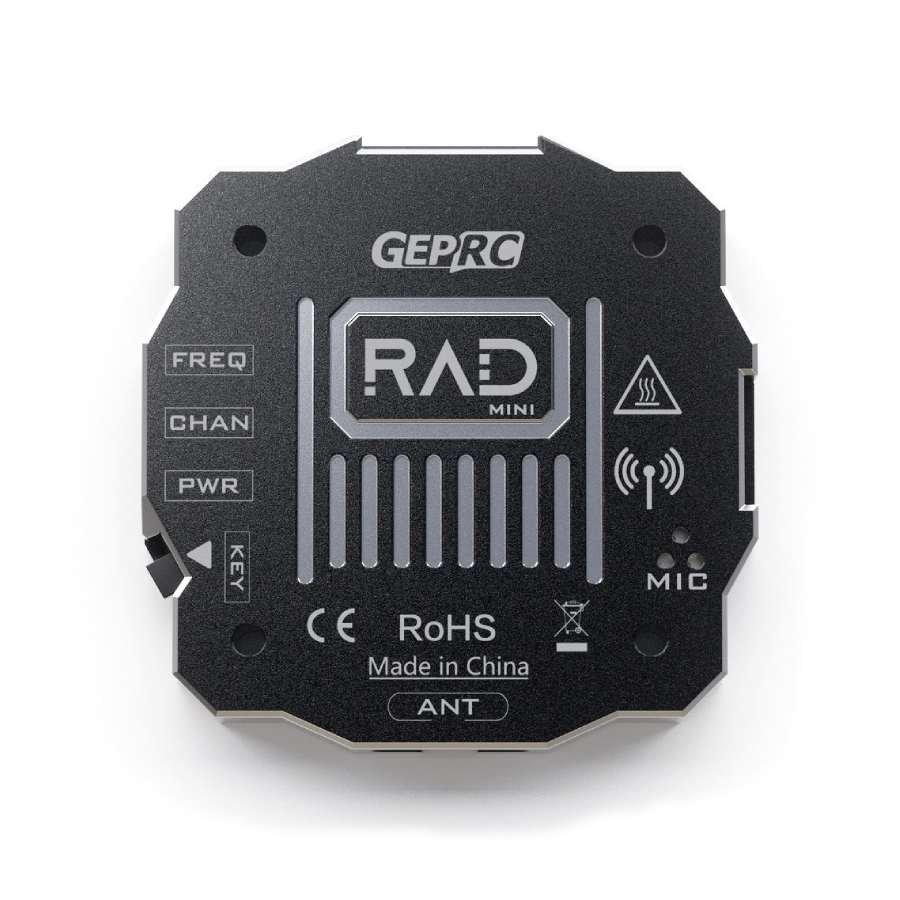

The Rad Mini adopts 6061 high-strength aluminum alloy housing to assist in heat dissipation, which has stronger impact resistance and better heat dissipation.
The Rad Mini supports the IRC Tramp protocol, OSD settings adjustment, built-in microphone can provide a real-time sound transmission.
7-28V wide voltage input, with temperature control protection function to prevent overheating and burnout.

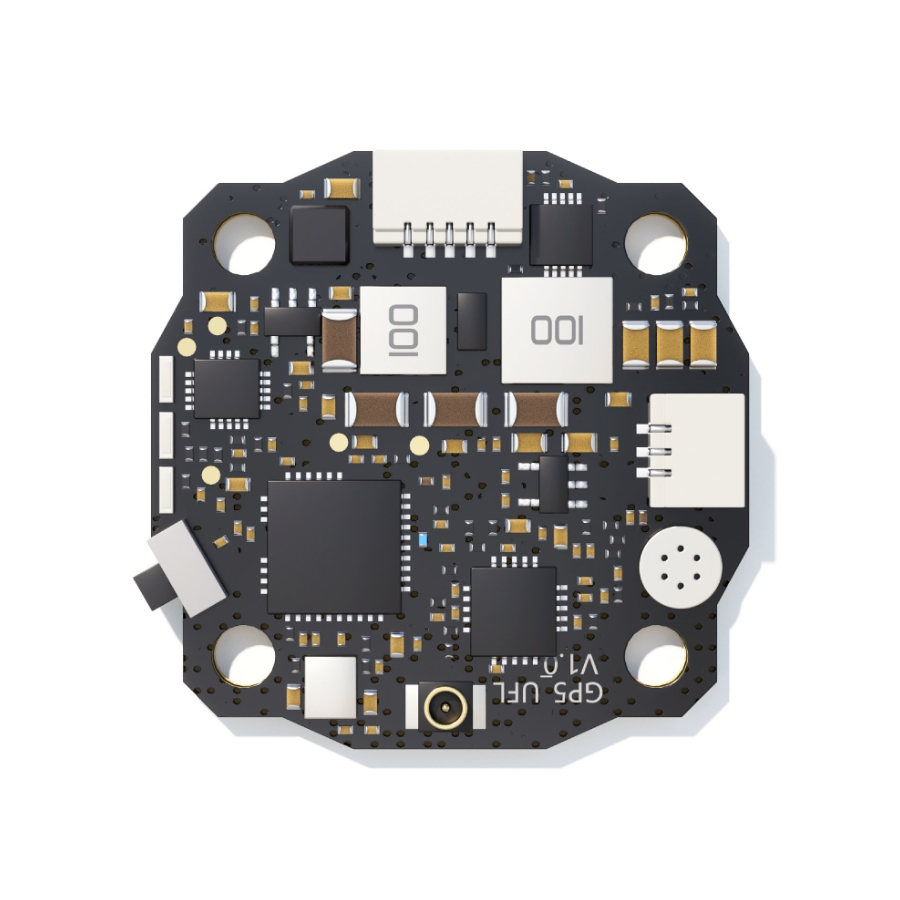

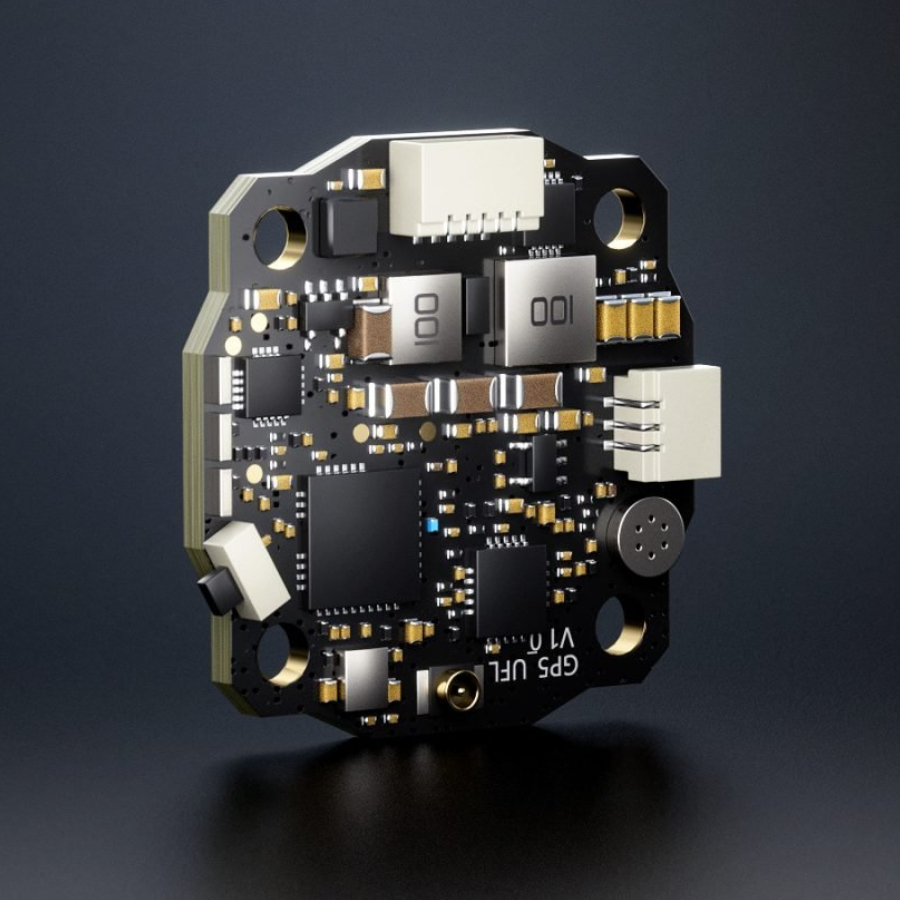

With 20x20mm PCB mounting hole, the diameter of single hole is 3.05mm. The aluminum alloy housing can be removed and installed as a stack.
Cover the housing with a 20X20 mounting hole and a single hole with M2 thread. It is recommended to be installed at the rear of the frame where there are 20X20 holes. Pay attention to insulation when installing, the PCB side down, and pad with four nylon spacers for installation. (included in the package)
Features:
- Lightweight, high power, with a maximum power of 1000mW, suitable for short and medium range flight to ensure image transmission quality.
- 4 Power levels: PitMode/25mW/200mW/500mW/1000mW.
- Adopts 6061 high-strength aluminum alloy housing to assist in heat dissipation, which has stronger impact resistance and better heat dissipation.
- With temperature control protection function to prevent high temperature burnout.
- Wide voltage input,supports 7V-28V voltage input.
- 3 adjustable regional frequency bands to meet the needs of various regions.
- IRC Tramp protocol, OSD settings adjustment.
- Built-in microphone can provide a real-time sound transmission.
- One adjustment button, three indicator lights, easy to operate.
Specifications:
- Model：GEPRC RAD MINI 5.8G 1W VTX
- Input voltage：DC7-28V（2-6S Battery）
- Output voltage: 5V@600mA(power 5V to Camera)
- Input impedance: 75Ω
- Protocol: IRC Tramp
- Antenna connector: MMCX

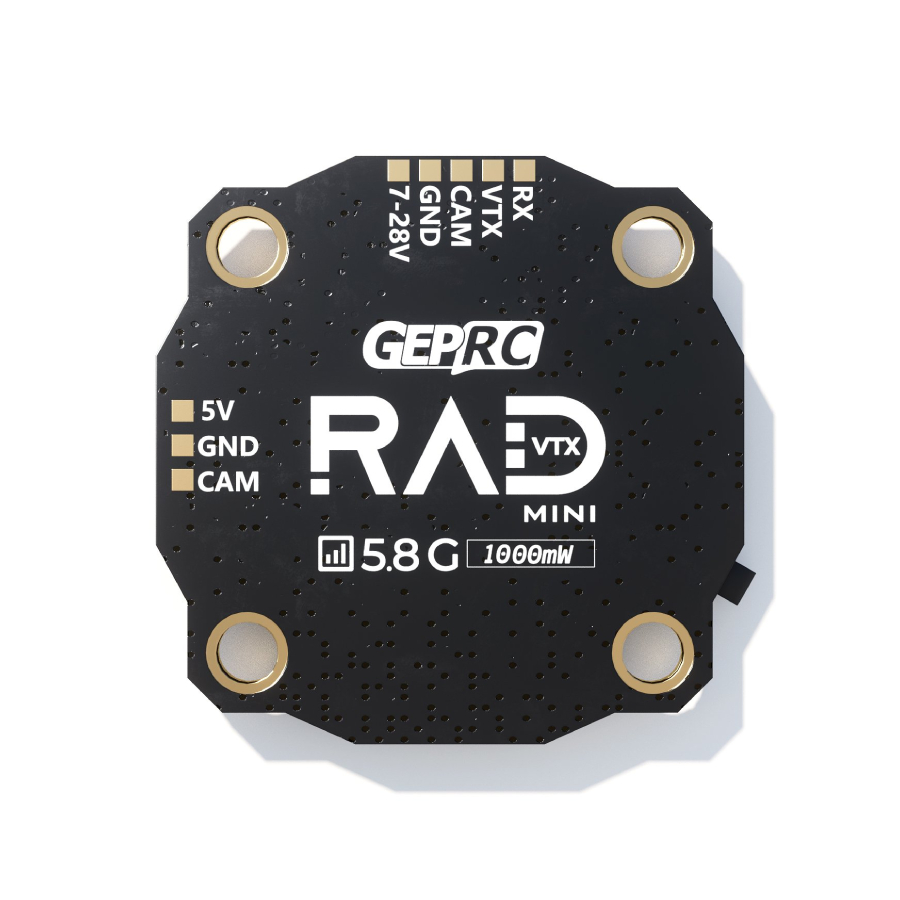

- Cable connector：SH1.0 5pin+SH1.0 3pin
- Output power：25mW/200mW/500mW/1000mW/PIT MODE
- Frequency band: Universal (40CH),FCC (37CH),EU (26CH)
- Video format: PAL/NTSC
- Microphone: Built in microphone
- Mounting hole: 20x20mm M2 thread
- Size: 30.83×30.83mm
- Net weight: 4.7g
- With metal housing: 8.4g

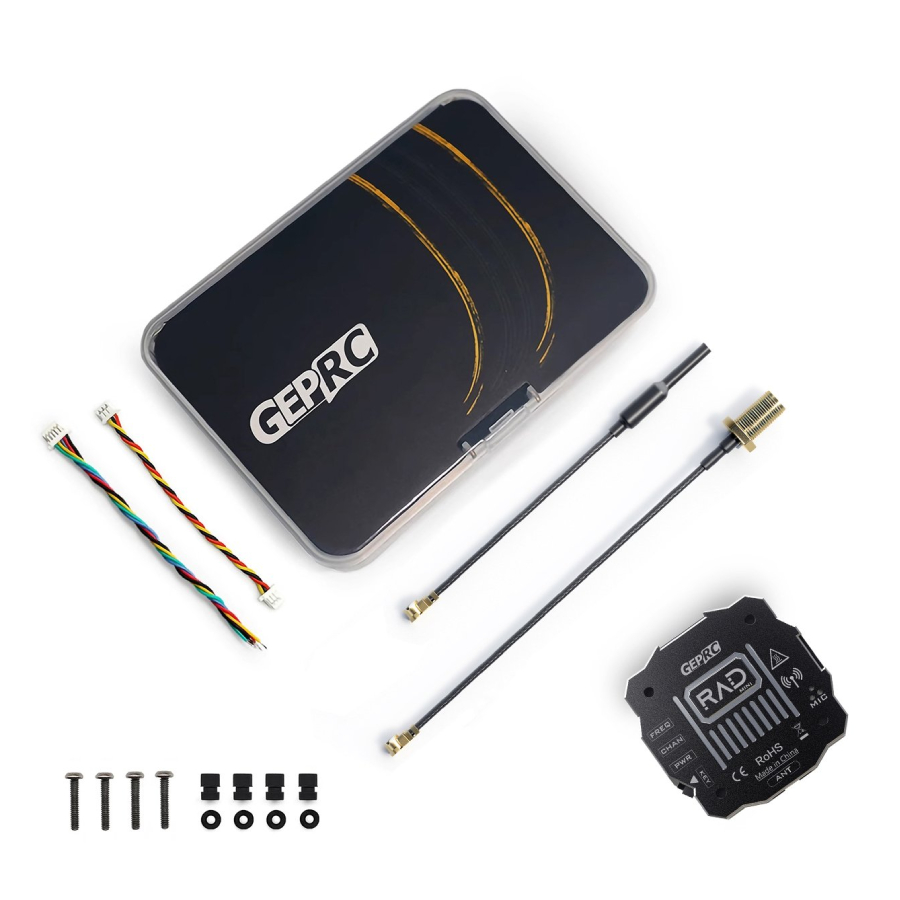

Includes:
- 1x GEPRC Rad Mini 5.8GHz VTX
- Accessories (MMCX to SMA pigtail, Antenna, Cables)
