Overview:

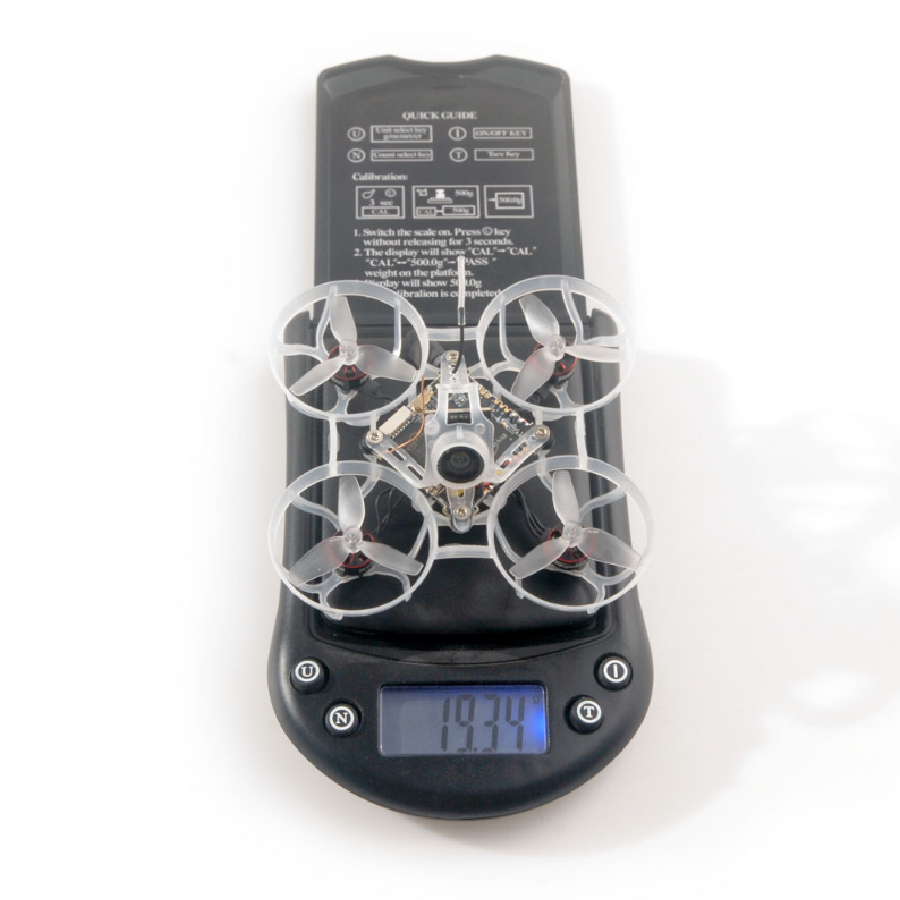

The Happymodel Mobula6 Race HD BNF is the first 65mm HD brushless tiny whoop that weighs less than
19.4g. With tiny whoops, every gram makes a large difference in flight performance. To achieve such a
low weight, HDZero has developed the world’s first 5-in-1 AIO that contains a HDZero VTX, FC, ESC, ELRS
RX, and 5V1A BEC. Using a single thick PCB rather than a stack of 2 improves durability and simplicity –
get ready for a new era of no-compromise tiny whooping in clear digital video!
To keep weight and cost to a minimum, the Race HD BNF features the light weight HDZero Eco camera.
The camera outputs HD composite video (720p) via a single wire instead of a MIPI cable, reducing
footprint, cost, and increasing durability. The digital video signal has stable color reproduction and 720p
progressive scan video with the stable near-zero latency HDZero is known for.
Features:
- The lightest 1S Whoop and Toothpick 2-IN-1 fpv drone
- The lightest 1s AIO 5IN1 F4 flight controller
- New Unibell SE0702 brushless motors with pcb wire board
- SPI BUS receiver ELRS V3 compatible
Specifications:
- Weight: 19.3g
- Recommended Battery: 1S 300mAh
- Propeller Size: 31mm
AIO
- MCU: STM32F411 (100MHz, 512K Flash)
- Gyro: BMI270
- On board voltage and amperage meters
- Built-in 5A(each) BLHeli_S 4-in-1 ESC
- Built-in 5.8G HDZero VTX
- Built-in SPI ExpressLRS 2.4GHz receiver
- Built-in 5V 1A BEC
- Board size:28.5x28.5mm with a 25.5x25.5 mounting hole size
HDZero Eco Camera
- Sensor size: 1/3 inch
- Resolution: 720p60 4:3
- FOV: D:150° H:120° V:98°
Motors
- KV:28000
- Stator diameter: 7mm
- Stator length:2mm
- Shaft diameter: Φ1mm
- Weight:1.5g
Battery:
-Connector GNB A30 (Can also fit BT2.0 Batteries)
Includes:
- 1x Happymodel Mobula6 Race HD BNF
- Accessories
