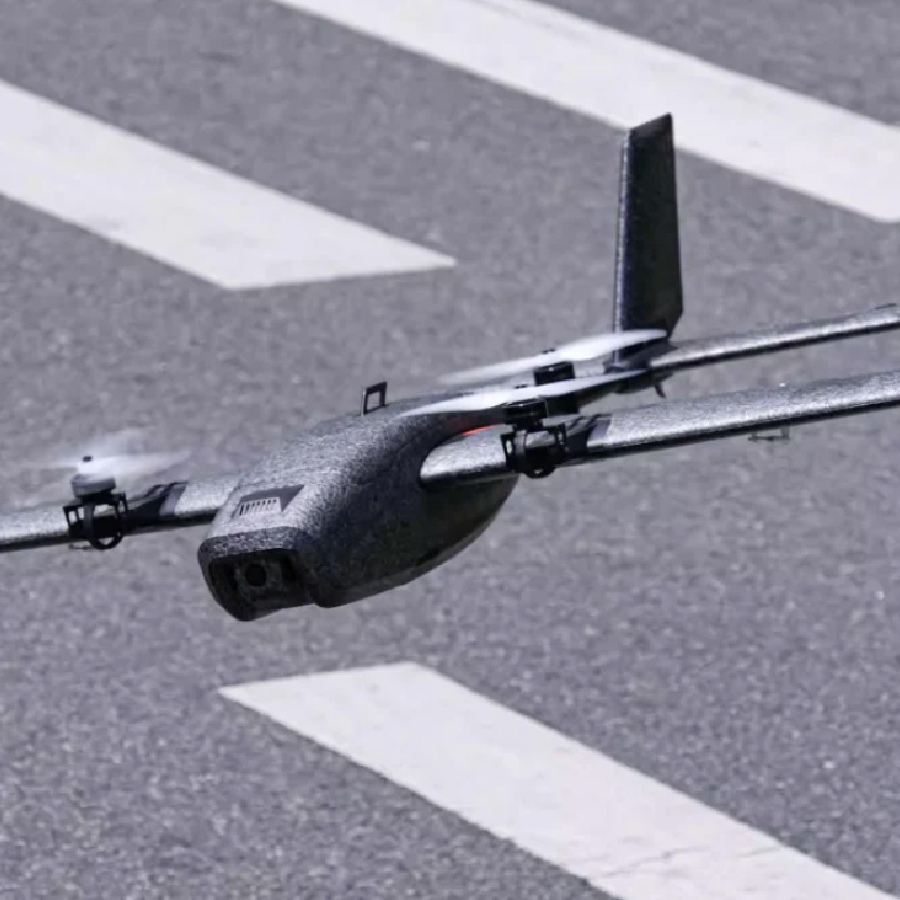

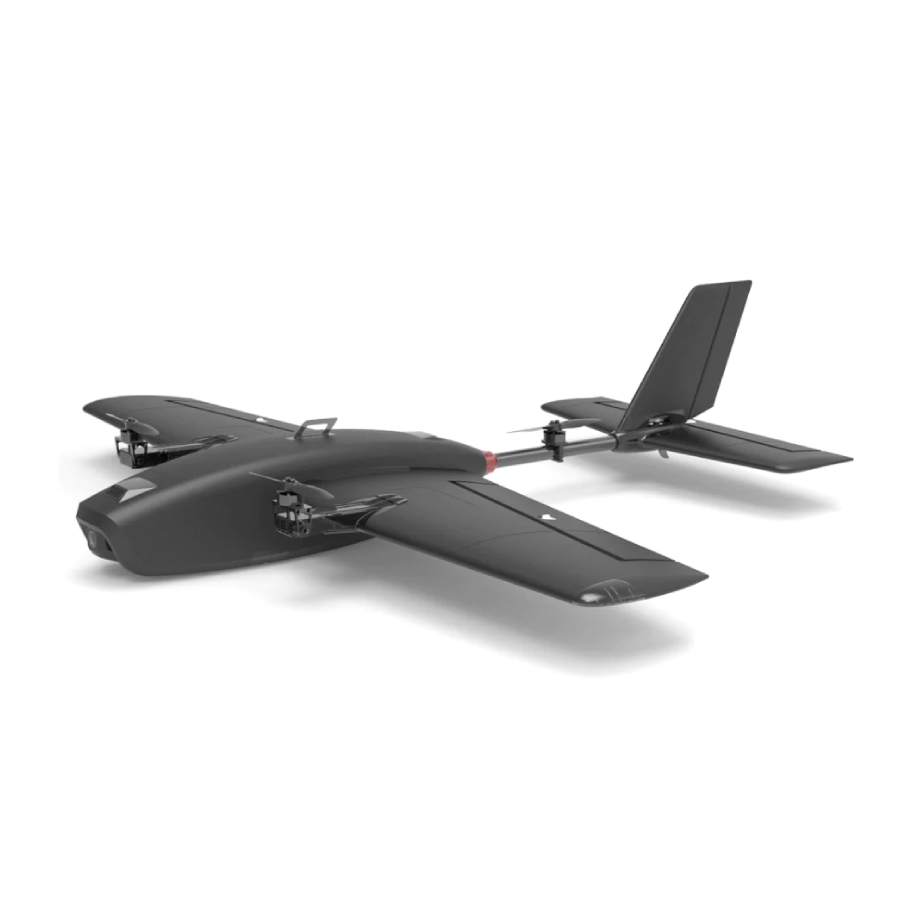

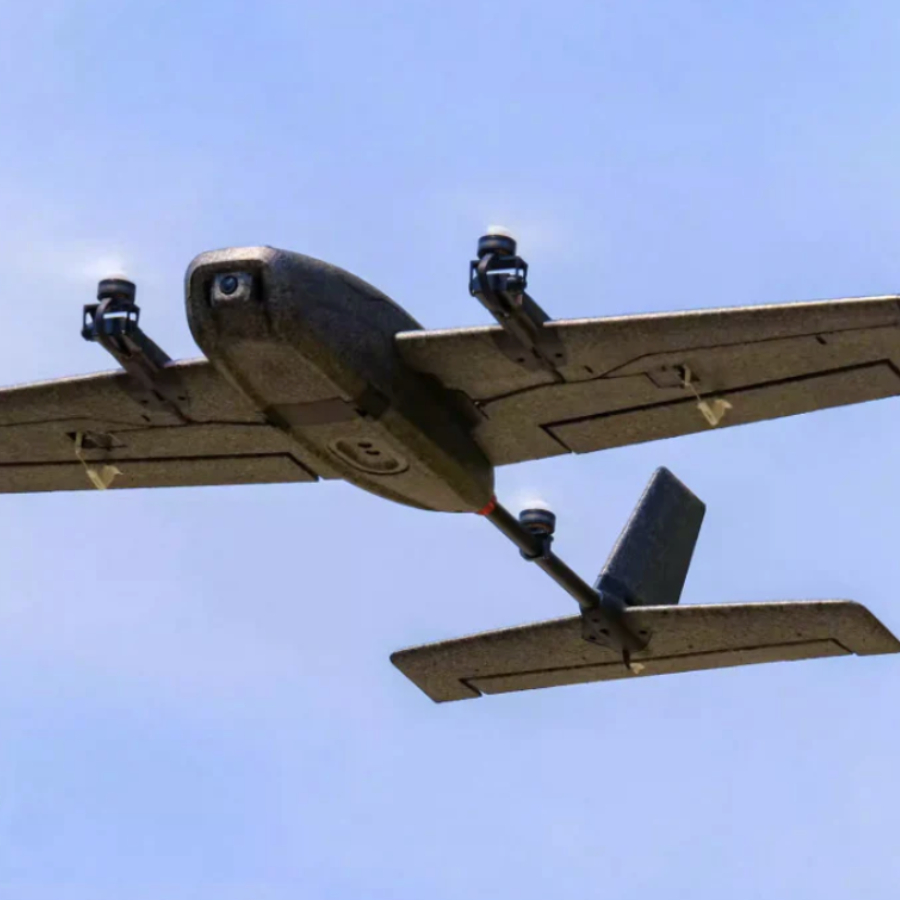

Hee Wing T1 Ranger VTOL FPV Plane (PNP)

Description:

The Hee Wing T1 Ranger VTOL is a lightweight and portable FPV plane capable of vertical take off and landing (VTOL). Disassembly/assembly takes ~ one minute making it ideal for quick trips to the flying field. The T1 Ranger has a three motor design which allows it to have a thrust to weight ratio as high as 1.71. The model itself is made from tough EPP foam and offers a large payload area for battery and electronics.

Our stock is the latest version with high density grey foam and other design tweaks.

This version is the VTOL PNP version which includes pre-installed motors, servos and esc. Glue is not included.

Features:

- Lightweight and portable, quick disassembly design, disassembly and assembly only takes one minute.
- VTOL - Vertical Take Off and Landing
- The dual motors have strong power and the thrust-to-weight ratio is as high as 1.71.
- Excellent aerodynamic design, slower flight is more stable.
- Small wingspan, large space, easy layout of electronic equipment.
- The design of doubling the adjustable range of the center of gravity, taking into account the dual flight requirements of light load and heavy load.
- The hatch cover adopts bayonet design, the structure is more reliable.
- The new flight control system makes it easy to control the vast sky.
- Support for external cameras, which can take multiple cameras at the same time.

Specifications:

- Brand Name: HEE WING
- Item Name: T-1 Ranger VTOL PNP
- Material: EPP / ABS+PC / carbon fibre / aluminum
- Wingspan 730mm
- Length: 645mm
- Height: 140mm
- Empty Weight: 155g (white) / 205g (grey)
- Takeoff Weight: 600g ~ 750g
- Cabin Space: Length 245mm x Width 51mm x Height 48mm
- Minimum Flying Speed: <20km/h
- Maximum Flight Speed: >120km/h
- Maximum Cruising Range: >25km
- Tensile Force: >600g (measured statically with the brushless version of 3S)
- Packing Size: 400mm * 230mm * 155mm

PNP Power System:

- Motor: 3x FX-1806-2000KV brushless
- ESC: 3x FX-25A brushless
- Propeller: 3x 5126
- Servo: 3x FX-7g

Recommended Parts (Not Included):

- Battery: 4S 1300mah~ 5000mah LiPo
- Radio System: 2.4G 6CH receiver and transmitter like Radiomaster TX16S
- Camera: Accepts nano size cameras without needing to cut foam

Includes:
- 1x Hee Wing T1 Ranger VTOL FPV Plane (PNP)

** Warranty Exclusion: Warranty on these models is D.O.A. only as the model is trivial to break and does not include any faults that develop during usage, crashes or otherwise. Once you receive the model please carefully test the model on the ground to ensure everything functions BEFORE your first flight as warranty will not be provided beyond that point. The battery will lose capacity over time and has zero warranty **
