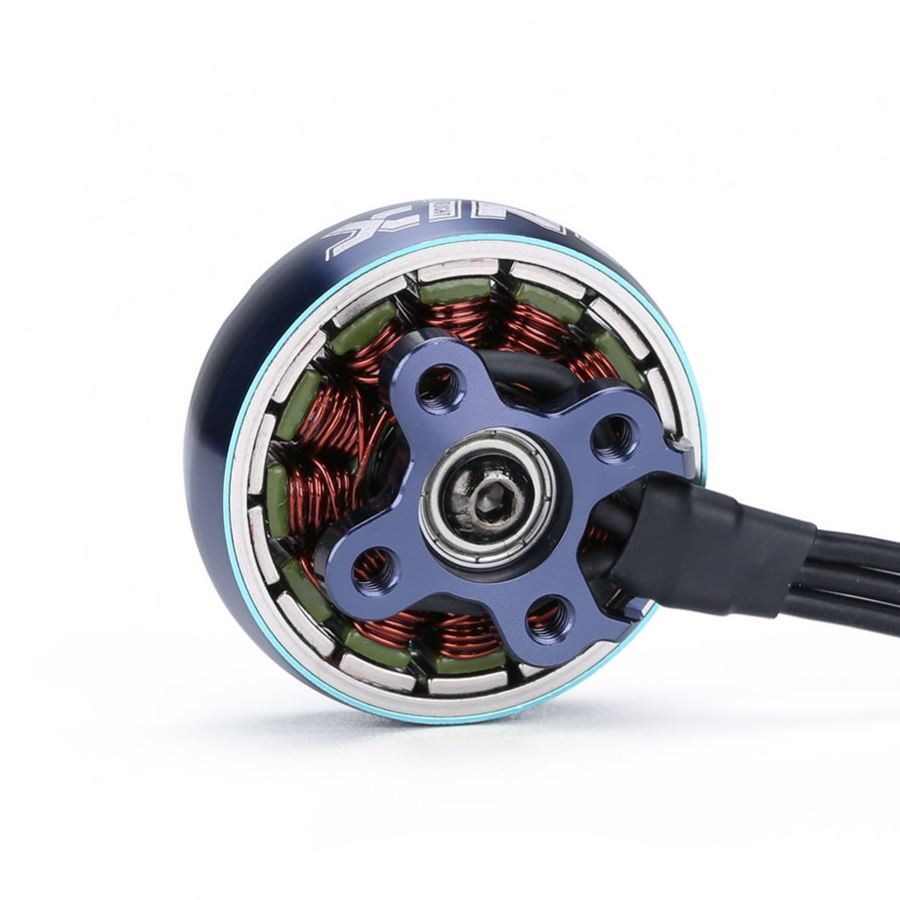

iFlight XING2 2604 1650KV Motor

Description:

The iFlight XING2 motors feature new centre slotted N52H curved arc magnets which dramatically reduce the response time of the motors. Simultaneously the air gap between the magnet and stator was reduce which leads to more efficiency and higher power output.

The new XING2 2604 1650KV motors is designed for 6S 6" freestyle builds.

Features:

- 5mm titanium alloy shaft, our strongest prop shaft ever!
- Crash resistant 7075 aluminum bell
- Smooth and long-lasting NSK 9x4x4 bearings
- Center slotted N52H curved arc magnets
- XING O-ring bearing gap protection
- Motor wires protector
- Dynamically balanced

Specifications:

- Model: XING2 2604 1650KV
- Prop shaft: CW thread
- Recommended input voltage Voltage: 4S-6S (16V-26V)
- Configuration: 12N14P
- Stator Diameter: 26mm
- Stator Length: 4.5mm
- Shaft Diameter: 5mm
- Weight: 32.1g with short wires
- Wires: 20AWG 160mm
- Mounting pattern: 16*16*3mm

Includes:

- 1x XING2 2604 1650KV Motor
- Accessories
