Overview:

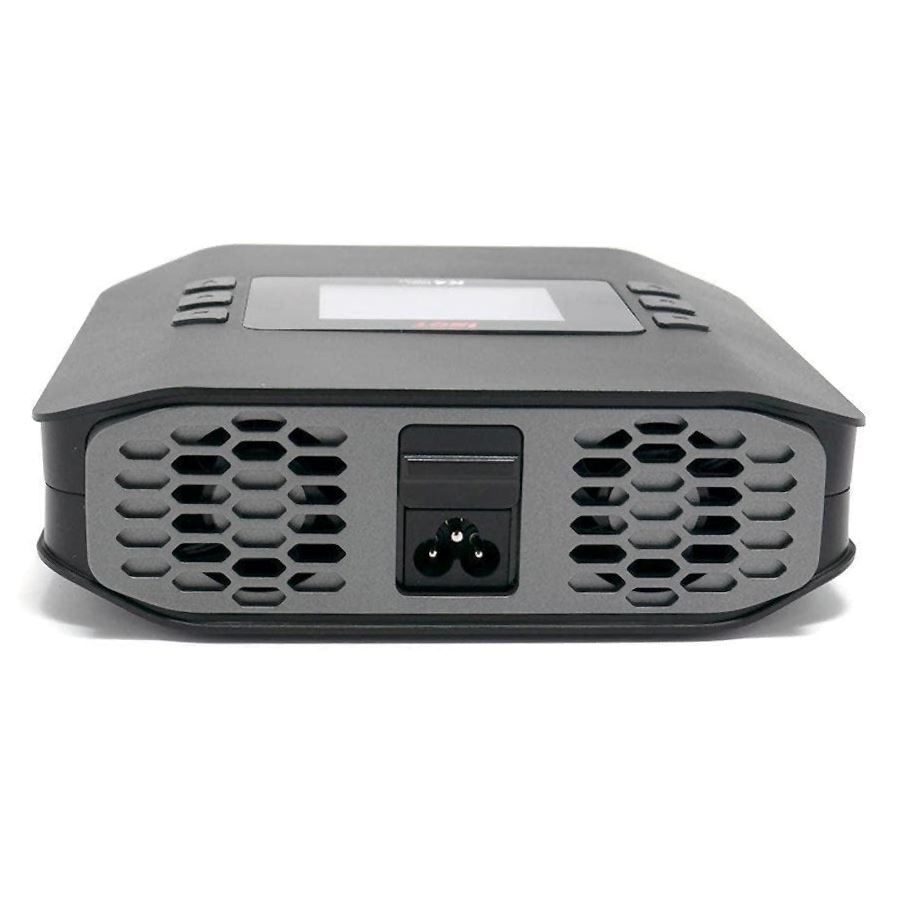

The ISDT K4 smart balance charger has dual channel output for a total of 1200W (when DC powered) or 400W when AC powered. The charger features a dual input - AC for 400W or DC for 600W x2. The charger supports upto 8S LiPo balance charging and also features a mode where it becomes an adjustable power supply able to operate in constant current or constant voltage mode. The ISDT charger features a wide range of power management protection features including overload protection, over voltage protection and over temperature protection.
** Requires a UK AC mains plug to IEC C5 function in AC mode - NOT included **
Features:
- IPS display with auto-brightness
- AC Input (400W charge rate) or DC (1200Wx2 max charge rate)
- Upgradeable Firmware
- Adjustable Digital Power Supply (CC 1A~5.0A / CV 2~30V)
- Battery destroy mode (discharges battery safely down to 0V)
- Parallel charging (needs suitable cable)
Specifications:
- Model No: K4
- Input voltage: AC 100~240V / DC 10~34V
- Output voltage: DC 1~34V
- Max. input current: DC 45A
- Max. charging power: AC 400W / DC 600W ×2
- Max. Discharging power: 30W ×2
- Parallel charging power/current: 800W/35A
- Parallel discharging power/current: 60W/3A
- Supported battery types and cell count: LiFe,LiIon,LiPo 1~8S；LiHv,ULiHv 1~7S;
- Pb 1~14S；NiMH/Cd 1~18S
- Charging current: 0.2~20.0A ×2
- Discharging current: 0.2~3.0A ×2
- Balance current: 1.5A/Cell Max
- Abnormal voltage alarm: Support
- Incorrect cell count setting alarm: Support
- Support Working temperature: 0~40℃
- Storage temperature: -20~60℃
- Dimension: 176×183×57mm
- Weight: About 1230g
Included:
- 1x ISDT K4 600Wx2 Smart Balance AC/DC Charger
IMPORTANT: Never charge batteries unattended! Constant supervision is required as batteries can be dangerous when mishandled. We recommend charging your batteries inside a protective charging bag well away from anything combustable.
