Overview:

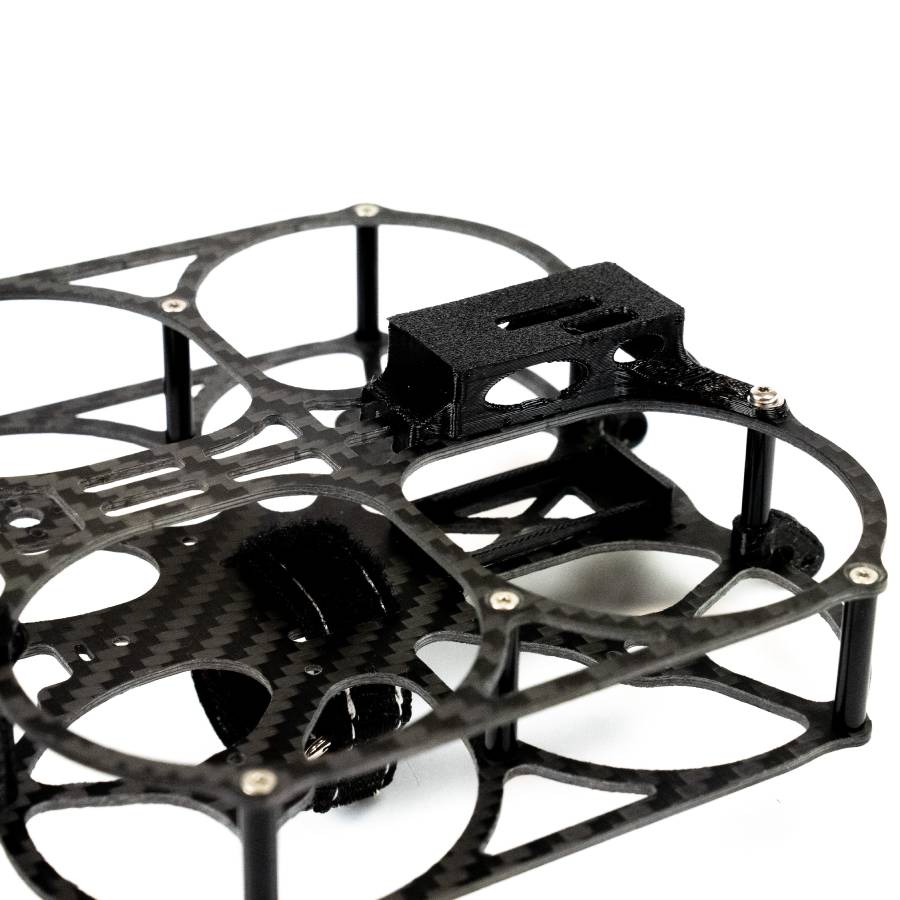

The KD Drones KD20 is a 2" designed to carry an O3 air unit, a very safe drone with HD recording in a tiny footprint. This frame has the classic KD vertical VTX mounting to bring the props closer together, which creates a smaller footprint, while also giving easy access to all USB ports. It's a compact, stiff frame with fantastic performance and lower moment of inertia compared to traditional designs.
Specifications:
- Weight: 34g
- Size: 115 x 126 x 33 mm
- Mounting: 25.5 x 25.5 AIO FC, 9 x 9 Motor pattern, DJI O3 VTX
Frame kit includes:
- T700 Carbon: 1x top plate, 1x bottom plate
- Hardware
- Motor screws
- AIO FC screws and nuts
- 3D Prints
- Battery strap
- T6 Torx driver
- STLs and a Betaflight 4.4 tune can be downloaded for free from the KD20 GrabCAD page. The tune is used at your own risk and will not be suitable for all builds.
Recommended Parts (not included):
- 1204/1105 4500-5500kv motors
- Gemfan 2035 props
- Any 4s AIO FC
- 4s 450-750 mAh Lipo
- DJI O3 Air unit (this is the only supported VTX for this frame, you're very welcome to try others though)
Includes:
1x KD Drones KD20 2" Cinewhoop Frame
