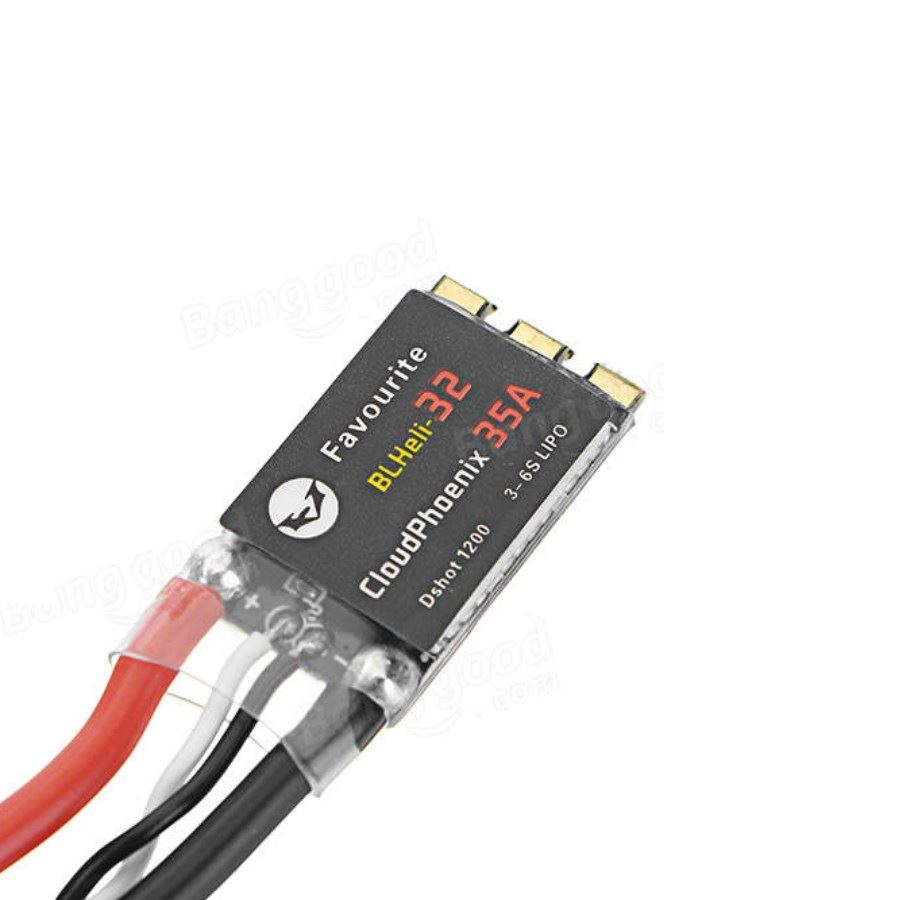

Little Bee CloudPhoenix 35A ESC BLHeli32 (3-6S)

Overview:

The latest Cloud Phoenix series of Little Bee ESCs using the faster STSPIN32F0A CPU allowing faster startup and acceleration. The ESC features a 3-6S input rating and a constant current of 35A and supporting burst currents of 45A.

Specifications:

- 3-6S Lipo
- NO BEC
- Continue Current:35A,Burst Current:45A up to 10S
- Size: 26*14mm.
- Weight:8g (include Power and signal wire)
- Support Oneshot125, Oneshot42, Mutishot and at least Dshot1200 etc.
- Main IC:runs on an ARM 32bit MCU(STSPIN32F0A ),running at 48MHz
- MOS:IR5301，Both low and high side fets are Nfets,size is 5*6
- Programmable pwm frequency, up to 48kHz,run motors even smoother
- Low voltage and temperature protection
- Current sensor and Telemetry Pad
- BLHeli-32 Bootloader & Firmware
