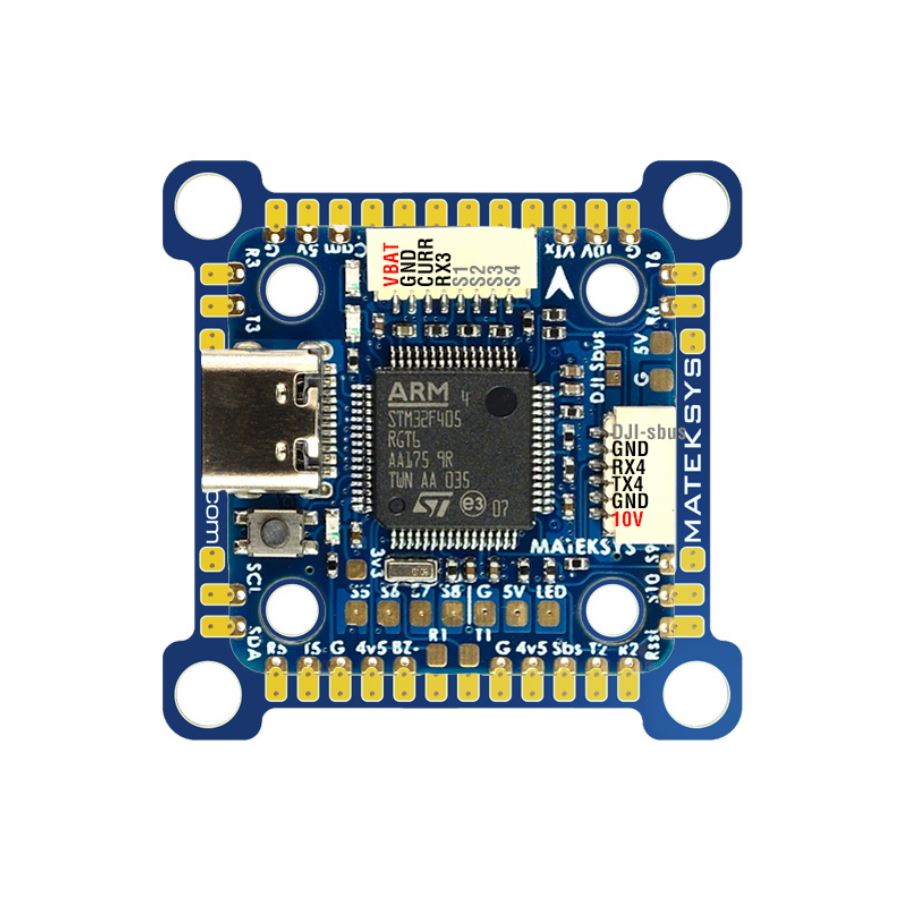

Matek F405 MiniTE Flight Controller

Overview:

The Matek F405 MiniTE is a replacement for the Matek F722-miniSE. It features a large flash memory storage - 1MB allowing ardupilot to run. The flight controllers supports 8 motors and 3 servos in INAV/BF and includes a new ICM42605 IMU. The F405-miniTE

Features:

- MCU: STM32F405RGT6
- IMU: ICM42605
- OSD: AT7456E
- Baro: Goertek SPL06-001 (I2C)
- Blackbox: 16M-byte Flash memory
- 6x UARTs, 1x Softserial_Tx option
- 12x PWM outputs (8x Dshot)
- 1x I2C
- 4x ADC (VBAT, Current, RSSI, Airspeed)
- 2x PINIO
- 1x SH1.0_8pin connector (Vbat/G/Curr/R3/S1/S2/S3/S4)
- 1x SH1.0_6pin connector for DJI FPV Air Unit
- 3x LEDs for FC STATUS (Blue, Green) and 3.3V indicator(Red)
- Dual BEC, 5V 1.7A & 10V 1.4A
- 10V output ON/OFF switchable
- Convertible 20mm to 30.5mm mounting

Power:
- Input: 6~30V (2~S LiPo)
- BEC: 5V 1.7A, Max.2A
- BEC: 10V 1.4A for VTX or DJI Air Unit
- For stable 10V output, input voltage should > 11V, when input voltage =<11V, output = 90% input voltage.
- Battery Voltage Sensor: 1K:20K (INAV scale 2100, BF scale 210)
- No Current Sensor built-in, supports external current sensor of PDB/4in1

Firmware:
- ArduPilot: MatekF405-TE
- INAV: MATEKF405TE (not available in INAV configurator for now)
- BetaFlight: MATEKF405TE

Physical
- Mounting
- 20 x 20mm/Φ3mm with Silicon Grommets
- 20 x 20mm/Φ2mm with Silicon & Brass Grommets
- 30.5 x 30.5mm/Φ3mm with Conversion Plate and Silicon Grommets
- Dimensions: 28 x 28 mm
- Weight: 5g

Included:
1x Matek F405-miniTE Flight controller
- 20mm to 30.5mm conversion PCB
- Cables
- Silicon Grommets/Brass Grommets
