Overview:
The Matek mLRS 2.4GHz TX is a JR compatible TX module for the mLRS system. mLRS is similar to ELRS but focussed more on telemetry. It uses the same long range LoRa technology and CRSF protocol.
This module operates on the 2.4GHz band and includes a 5V fan. The JR Case design is provided on the Matek website for 3D printing and is not included.
Specifications:
mR24-30
- STM32G431KB, mLRS firmware
- LoRa SX1281 with TCXO
- PA/LNA SKY68383-11
- RF Frequency: 2.4GHz ISM
- RF power: 13dBm(min) / 20dBm / 24dBm / 27dBm / 30dBm(1000mW)
- Antenna connector: IPEX MHF-1 to SMA/RP-SMA

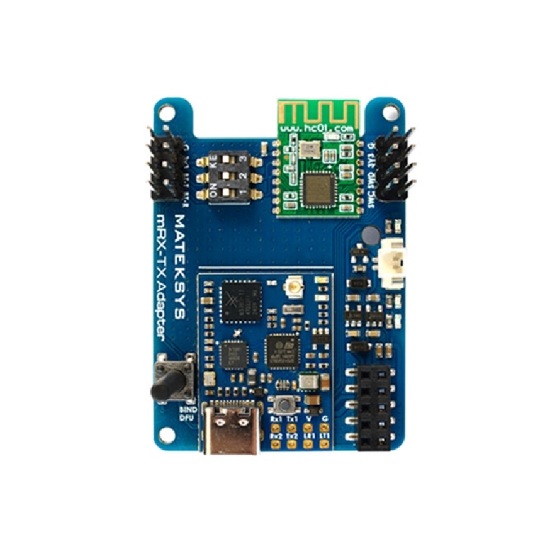

mRx-Tx Adapter
- Built-in HC-04 Bluetooth module
- Built-in 5V fan controller, running if ourput power>=500mW
- TX2: RC IN(CRSF)
- one buttom for DFU mode and Bind
- Red and Green LED for mLRS status
- Blue LED for bluetooth status
- Power supply: 5-13V DC @ JR_PIN3 (VIN)
Packing:
- 1x mR24-30-TX
- 1x IPEX MHF1 to SMA adapter cable 5cm
- 1x IPEX MHF1 to RP-SMA adapter cable 5cm
- 1x 5V Fan (25*25*10mm) and some screws
- no SMA antenna & 3D printed Case packed
Includes:
- 1x Matek mLRS 2.4GHz TX Module Kit
