Overview:
The Bandit Moxon Antenna, with its 80mm length, provides superior interference separation. Utilizing a professionally designed RF PCB substrate and optimized the bandit series the Bandit Moxon antenna is ideal for long range applications. The Bandit Moxon features a heavy-duty RG402 coax to optimize signal transmission and reduce external interference. The antenna also features a customized 360° swivel RP-SMA socket to allow for position adjustment.
Features:
- High gain, high efficiency directional transmitter antenna
- Compact and rugged housing
- Using professional RF PCB substrate, optimised for traditional MOXON design
- Uses heavy-duty RG402 coax cable and customised 360° swivel RP-SMA socket
- Featuring an 80mm coax cable, reduces interference to the transmitter
Specifications:
- Bandwidth: 860-930MHz
- Polarisation: Linear
- Radiation Direction: Directional
- Beam Width @-3dB: 145°
- Gain: 4.6dBi
- VSWR: >1.5
- Connector: RP-SMA
- Input Impedance: 50Ω

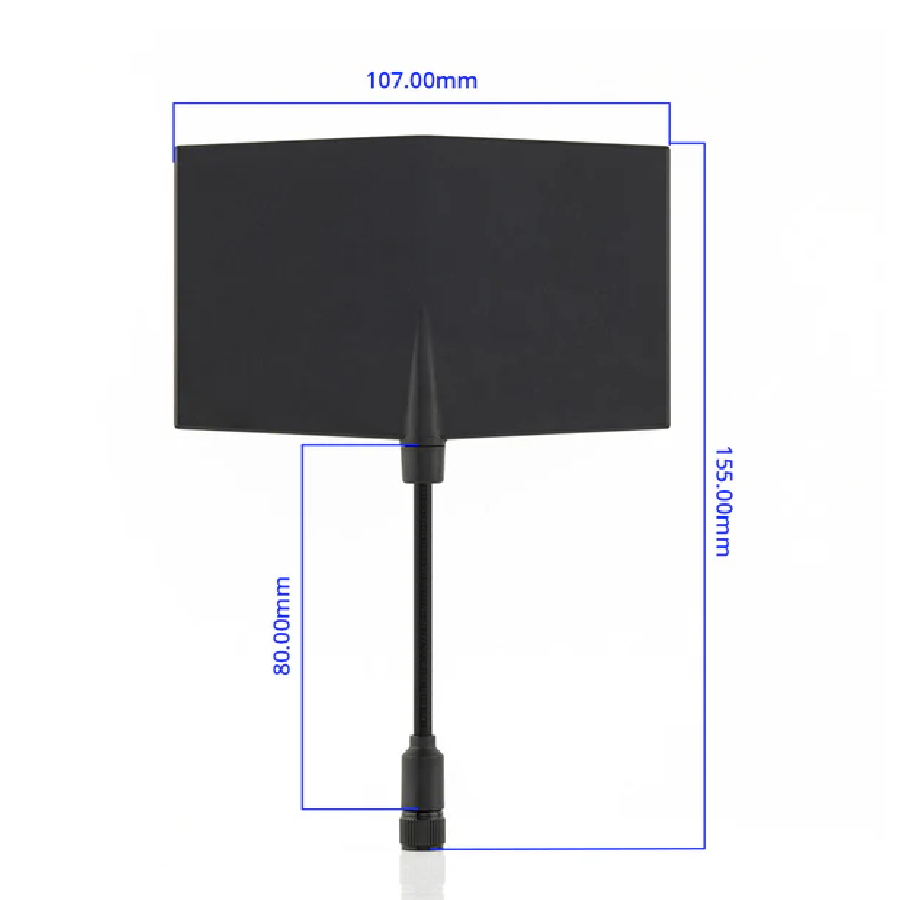

- Dimension: 107*155mm
- Weight: 47.44g
** HOBBYRC is the Radiomaster UK main dealer & repair agent. Be assured these are genuine parts **
Included:
1x Radiomaster Bandit 868MHz/915MHz Moxon Antenna
