Overview:

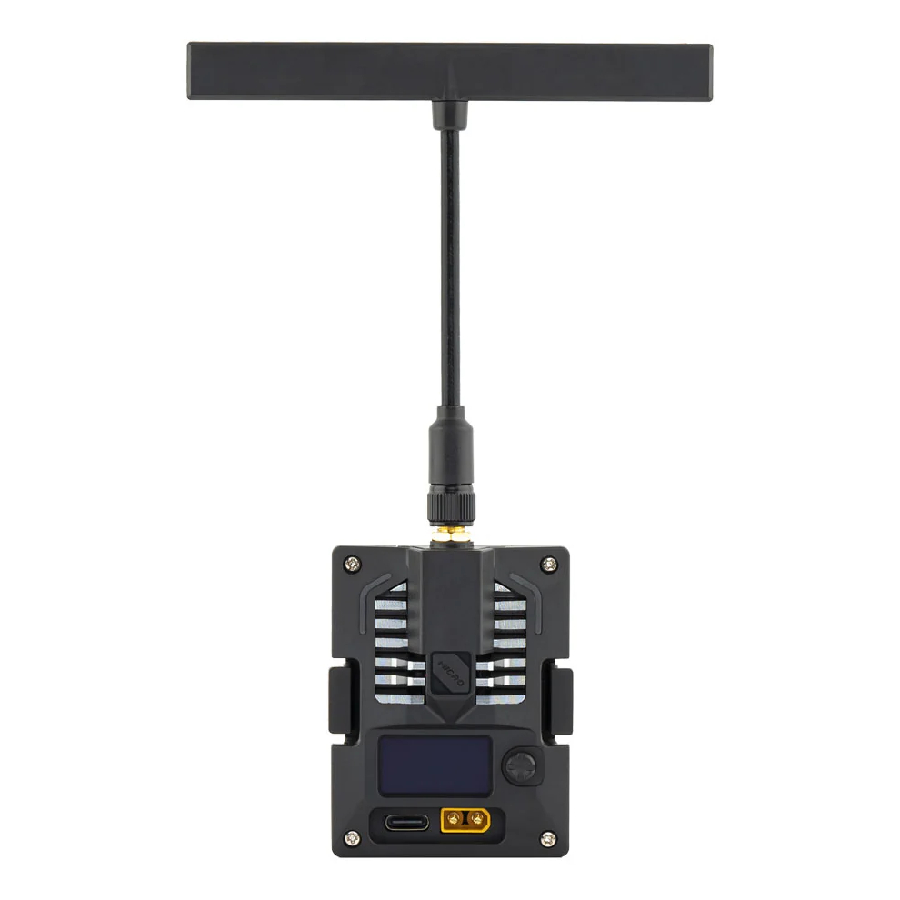

The Radiomaster Bandit Micro 915MHz ELRS RF Module is a cutting-edge module which delivers excellent performance and reliability for long-range drone and UAV applications.
With its innovative convection cooling system and built-in turbo fan, the module ensures optimal temperature control and operates with minimal noise. Its form factor is ready to go with the TX16S MKII, Boxer, TX12 MKII and other radios with a JR Module bay.
It features an OLED display, a five-directional navigation key and UART solder pads on the PCB which may also be repurposed as a receiver. This enables you to use the Bandit Micro as a 1000mW Telemetry receiver for ultra long range flights.
** THIS IS AN 868/915 MHZ ELRS RECEIVER, NOT COMPATIBLE WITH 2.4GHZ ELRS HARDWARE. IF YOU DON'T UNDERSTAND THIS THEN THIS IS NOT THE RECEIVER YOU WANT **
** This receiver contains a 915MHz ELRS transmitter. Please note that usage of this frequency band in the UK is currently illegal. Please make sure to flash the firmware onto the 868MHz band **
Features:
- Up to 1 Watt power output
- Packet rates up to 200Hz
- Optimized circuitry for ultra-low power consumption
- Built-in TCXO oscillator
- Low noise, high comfort
- High contrast OLED display
- Innovative convection cooling design
- Wifi and Bluetooth support
- Built-in ExpressLRS backpack
- 5 Directional nav key
- Compatible with full size JR module bay. Supports TX16S MKII, Boxer and TX12 MKII radio
Specifications:
- Regulatory Domain: FCC915
- MCU: ESP32(main), ESP8285(aux, as ESP backpack)
- RF Chip: SEMTECH SX1276
- Refresh Rate Min/Max: 25Hz/200Hz
- RF Output Power: 1000mW/30dBm
- Micro standard 5pin connector
- Built-in OLED screen
- XT30 Power Supply Voltage: DC 6V ~ 16.8V
- Dimension: 64.1 x 49.6 x 34.1mm
** HOBBYRC is the Radiomaster UK repair agent. Be assured these are genuine parts backed by genuine spares should something go wrong **
Included:
- 1x Radiomaster Bandit Micro 915MHz ELRS Module
