Overview:

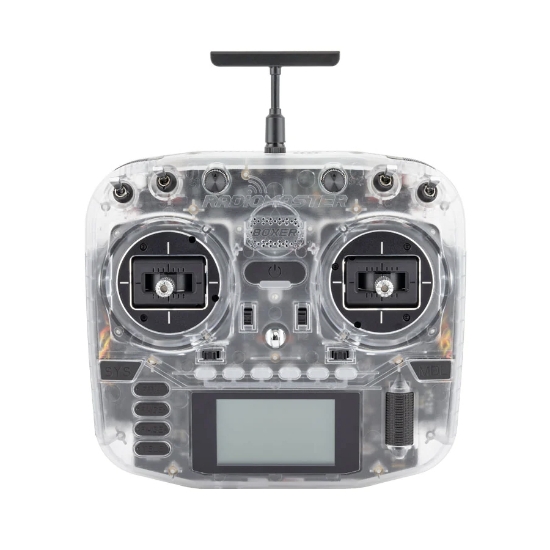

The Radiomaster Boxer transmitter in clear / Transparent is the perfect combination of size and ergonomics make the BOXER an ideal choice for pilots on the go. Featuring full size hall gimbals for precision control and an intuitive button layout, the BOXER gives you a compact radio without compromising on comfort and function.
This is a special edition transparent version that ships with a bonus white LED kit allowing you to customise the look of the radio further.
This version is the ELRS module one with EU LBT compliant firmware (100mW output). If you require additional protocols the firmware is upgradeable - the hardware itself is not restricted.
** HOBBYRC is the Radiomaster UK repair agent. Be assured these are genuine radios backed by genuine spares should something go wrong **
** Requires 2x 18650 cells OR LiPo battery to function (see related items) **
Features:
- Special transparent version radio with white Gimbal LED set and RadioMaster Neck Strap included
- Built-in ELRS module
- Featuring a powerful STM32VGT6 processor with 1MB RAM
- Preinstalled EdgeTX firmware
- QC3.0 fast charging support 2.0A MAX
- Compact design with excellent ergonomics
- New low-profile latching SE switch and momentary SF switch
- Oversized battery compartment - Space for a 2S 6200mAh pack, up to 20-hour duration (Batteries not included)
- Full sized V4.0 Hall effect gimbals as standard, upgradable to AG01 CNC Hall effect gimbals
- Standard JR module compartment
- RadioMaster standardized button layout
- Versatile 6-position switch for flight mode access
- Adjustable and Removable T-shape Antenna
- Industry first fabric handle for improved portability
- Changeable, ergonomic grips
- Redesigned SD card slot with pre-loaded SD card included
- External module power slots in battery cover
- RadioMaster signature carry case and gimbal protector are included as standard to ensure your radio stays safe while on the move
TX16s Specifications:
- Item: BOXER Radio (Transparent)
- Size: 235*178*77mm
- Weight: 532.5g
- Frequency: 2.400GHz-2.480GHz
- Internal RF Options: ELRS Module (EU LBT)
- Supported protocols: Module dependent (Note this ships EU LBT compliant so will require firmware updates if you are in a region that allows the full transmission power to be used)
- Transmitting Power ExpressLRS: Max 30dBm (international) / Max 20dBm (EU LBT)
- Voltage Range: 6.6-8.4V DC
- Radio Firmware: EdgeTX (Transmitter) / Multi-Module (RF module)
- Channels: Max 16 channels (Receiver dependent)
- Battery: 7.4V 2-cell Lithium-Polymer / Two 3.7V 18650 Lithium-Ion cells (batteries not included)
- Display: 128*64 Monochrome LCD display
- Gimbal: High precision 4.0 Hall gimbals as standard (AG01 Optional)
- External module: JR/FrSKY/Crossfire compatible
- Upgrade Method: USB/SD card & EdgeTX Companion PC software
Included:
- 1x Radiomaster Boxer Transmitter (ELRS) (Mode 2) (Clear/Transparent)
- 1x Signature Carry Case
- 1x T Antenna
- 1x USB-C Cable
- 1x Gimbal Protector
- White LED Kit
- Accessories
