Overview:

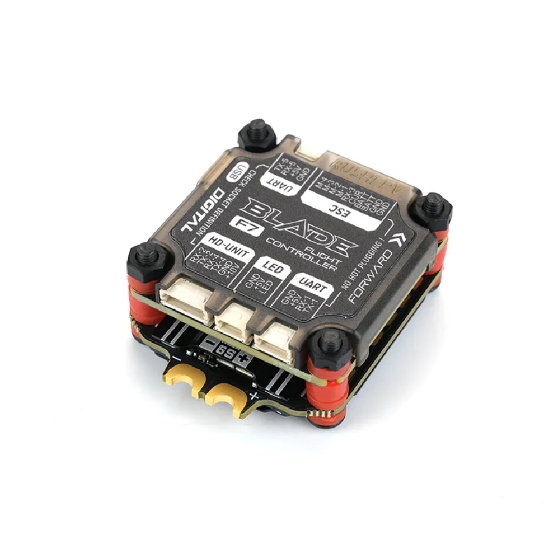

The RUSH Blade F722 FC and Blade 50A Sport 4in1 ESC is a combined stack suitable for Digital FPV. The stack has 30.5x30.5 mounting holes and is compatible with Digital FPV video systems like DJI, Walksnail, HDZero etc. This FC features a high-performance STM32 F722 MCU, ICM42688P Gyro, 16Mb Black Box memory and barometer. The 4in1 ESC is includes a high performance M4 processor and supports upto 128KHz drive Frequency.
Current version is V2.
FC Features:
- High-performance STM32 F722 MCU with speeds up to 216MHz.
- ICM42688P gyroscope, independent low-noise power supply.
- Built-in analog video OSD, 16M black box,5UART ports, 8PWM output ports, 2ADC ports, 1 I2C port, 1 camera control port.
- Dual High power synchronous rectifier BEC, supports up to 36V input and provides stable 5V 3A / 10V 3A output.
- Modular cable design, with reliable locking structure, can be installed quickly, while retaining full-featured pads on the back, providing more expansion support.
- Single-side layout, lower mounting height, 6-layer PCB, isolated ESC interference.
- PC case is impact resistant and easy to disassemble, isolated from dust and grass clippings.
FC Specifications:
- MCU STM32F722RET6
- Gyro ICM42688P
- OSD AT7456E
- Blackbox Logging: 16Mb
- BEC Input: 7-36V / 3-6S LIPO
- BEC Output: 5V 3A / 10V 3A
- Ports: 8×PWM 5×UART 1×I2C
- ADC: V-BATT / CURR-ESC
- Barometer: BMP280
- Size: 36.5mm*37mm*5.2mm
- Mounting Holes: 30.5*30.5mm
- FC Target: RUSH_BLADE_F7
- Weight: 11g(without cable)
ESC Specifications:
- Current Rating: 50A
- Mounting: 30.5mm x 30.5mm
- Max Voltage: 40V (recommended not to exceed 60% of this rating)
- Battery: 3-6V Lipo
- PWM Freq: 24-128K
- Weight: 16.2g
- Size: 45x36.5x7.5mm
Included:
- RushFPV Blade F722 FC & 50A Sport 4in1 ESC Digital Stack
- Accessories
