Overview:

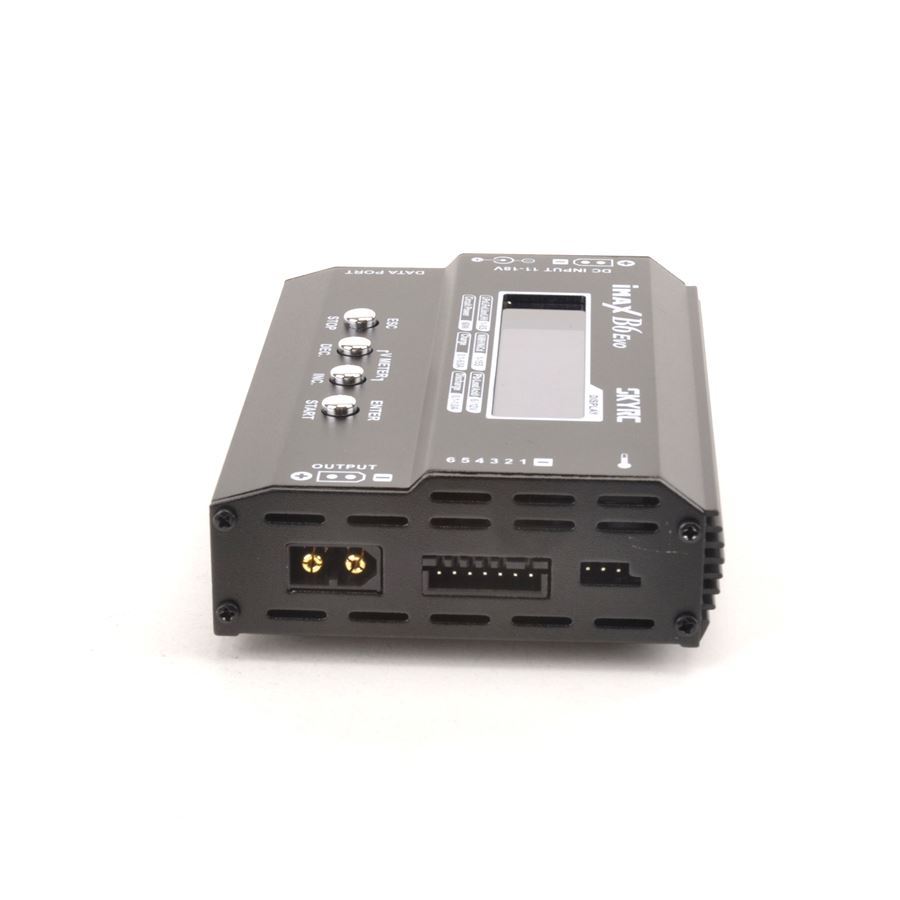

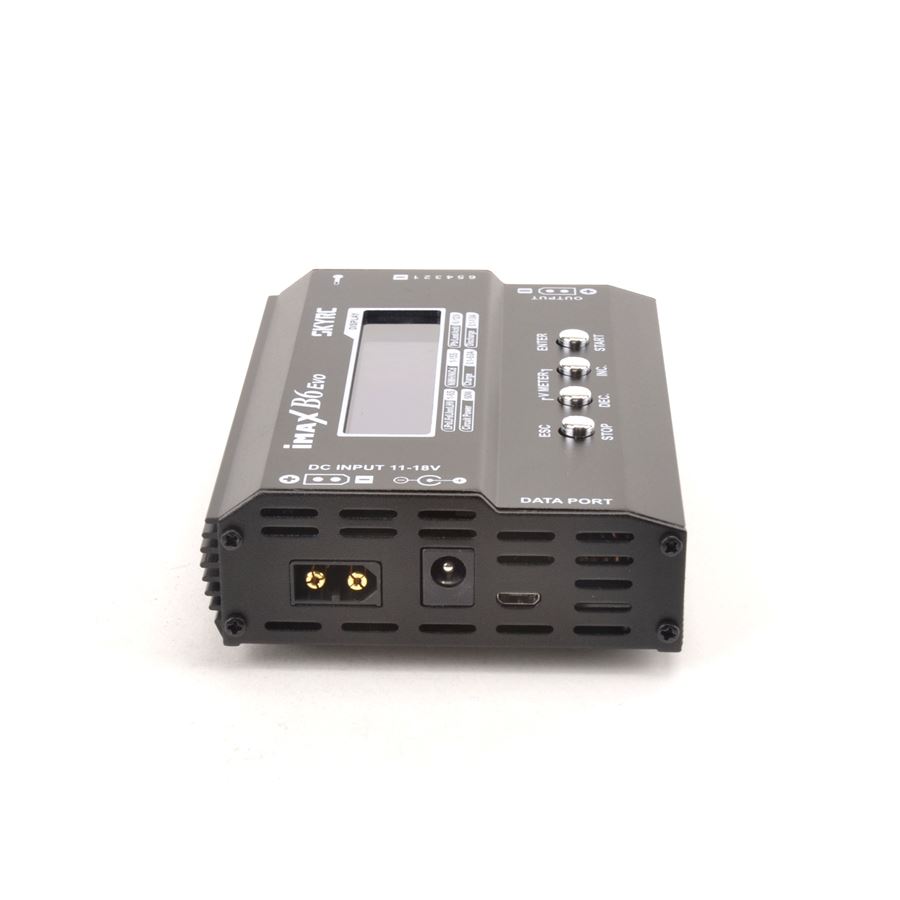

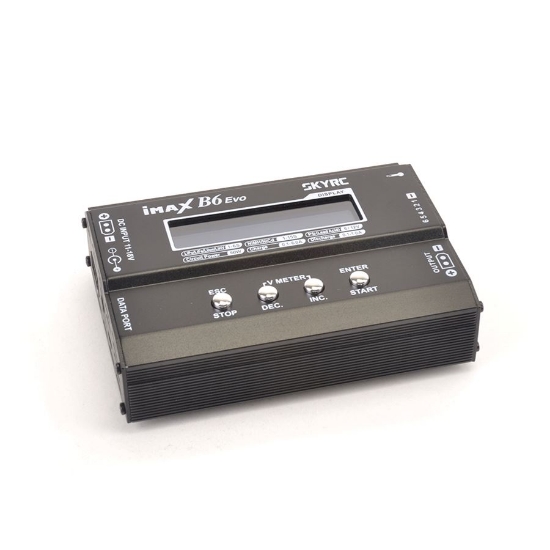

The SkyRC IMAX B6 Evo is the next generation of the famous B6 charger with numerous updates including XT60 connectors on the input and output ports, AGM battery charging, charging shortcuts to save time, DC to DC convertor with adjustable output voltage 5V to 20V and calibration of individual cell voltages.
Requires suitable DC input - Either an AC>DC power adapter or battery to power the unit - not included.
Features:
- 60W Battery Charger for LiPo/LiHV/LiFe/ Li-Ion/NiMH/NiCd/Pb Chemistries
- 60W DC to DC power convertor
- 5 W battery discharge
- Charge/Discharge/Fast Charge/Storage modes
- XT60 connectors for input and output
Specifications:
- Size and Weight:
- Case Material: Aluminium
- Case Size: 115x84x31mm
- Weight: 238g
- Display:
- Display Type: LCD
- display backlight: Blue
- Power:
- DC Input:11-18V
- Charge Wattage: 60W
- Discharge Wattage: 5W
- DC Output Wattage: 60W
- Battery:
- Battery Types/ Cells:
- LiPo/LiHV/LiFe/ Li-Ion: 1-6 cells
- NiMH/NiCd: 1-15 cells
- Pb: 2-20V
Battery Capacity Range:
- NiMH/NiCd/LiPo/LiHV/LiFe/Li-Ion/Pb: 100-50000mAh
- Charge Current:
- NiMH/NiCd/LiPo/LiHV/LiFe/Li-Ion/Pb: 0.1-6A
- Discharge Current: 0.1-1A
- Balance Cells: 2-6 cells
- Balance Current: 300mA/cell
- Safety Timer: 1-120minutes/ off
Included:
- SkyRC IMAX B6 EVO 60W Charger
- Input Cables
IMPORTANT: Never charge batteries unattended! Constant supervision is required as batteries can be dangerous when mishandled. We recommend charging your batteries inside a protective charging bag.
