Overview:
The Skystars KO45 4in1 45A ESC and F7 Flight controller stack. The KO45 ESC supports 3-6S and includes high quality Mosfets, It runs BLHeli_32 firmware and supports all recent modern ESC protocols like DShot 1200 etc.
The Skystars F7 HD V3 flight controller supports the DJI air unit with a dedicated 10V output as well as traditional analogue video OSD. It features a high speed F7 processor and has 6 uarts for connecting peripherals.
ESC Specifications:
- Skystar KO45 ESC
- The installation size is 30.5mm x 30.5mm. The installation hole is M4.
- ESC weight: 12g
- ESC onboard current sensor.
- Continuous current: 45A
- Instantaneous current [5 seconds]: 55A
- Drive signal: Dshot300-1200 / Proshot1000 / Oneshot / Multishot / PWM
- MCU: STM32F051 Operation frequency: 48MHz
- Firmware: BLheli-32
- MOS tube model is QN3019M6

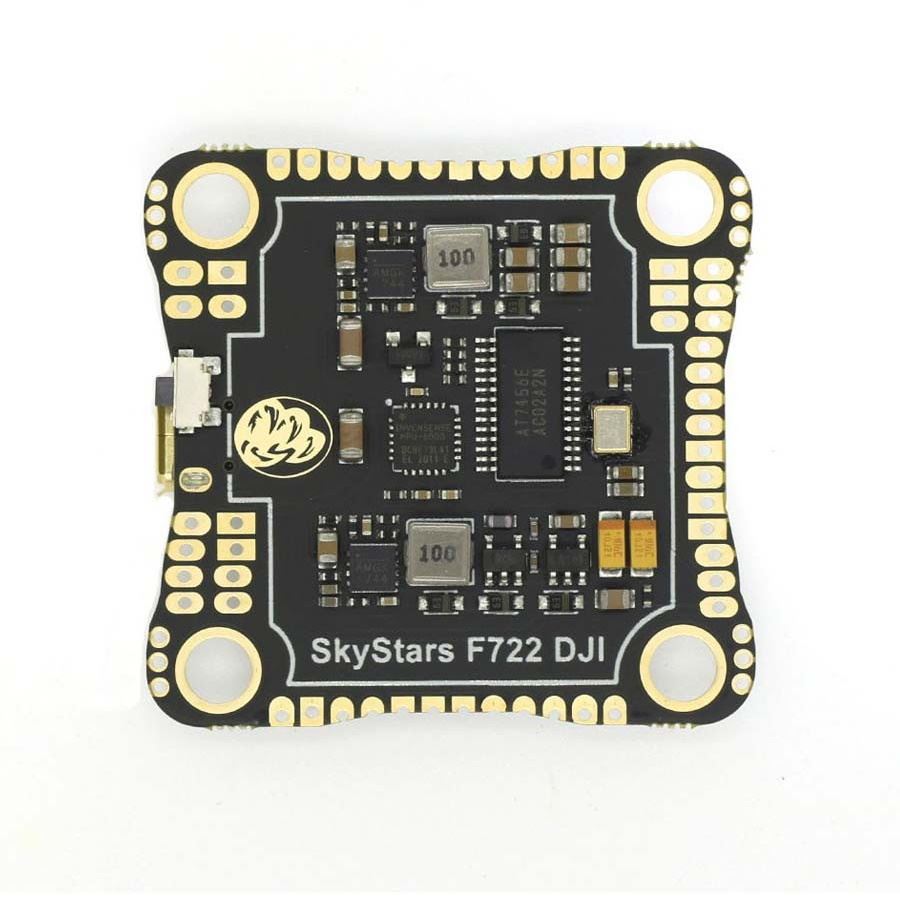

Skystars F7 HD V3 FC Specifications
- Skystar F7 HD Flight controller
- Input Voltage: 3-6S LiPo (11.1V ~ 22.2V)
- MCU: STM32F722RGT6 216MHz
- IMU: BMI270 (SPI)
- Baro: BMP280
- OSD: Betaflight OSD & DJI HD OSD (UART6)
- BEC Output: 5V 3A & 10V 3A
- RSSI Pad: Yes
- Buzzer Pad: Yes
- CURR Pad: Yes
- Blackbox: 16MB
- Firmware: SKYSTARS F7HD
- 6 hardware UARTS (UART1,2,3,4,6)
- Dimensions: 39x439x6.2mm
- Mounting Holes: Standard 30.5mm square to the center of holes
- Weight: 6.9g
Includes:
- 1x Skystars F7 HD V3 Flight Controller
- 1x Skystars KO45A 4in1 45A ESC
- Accessories (Wires, capacitor etc)
