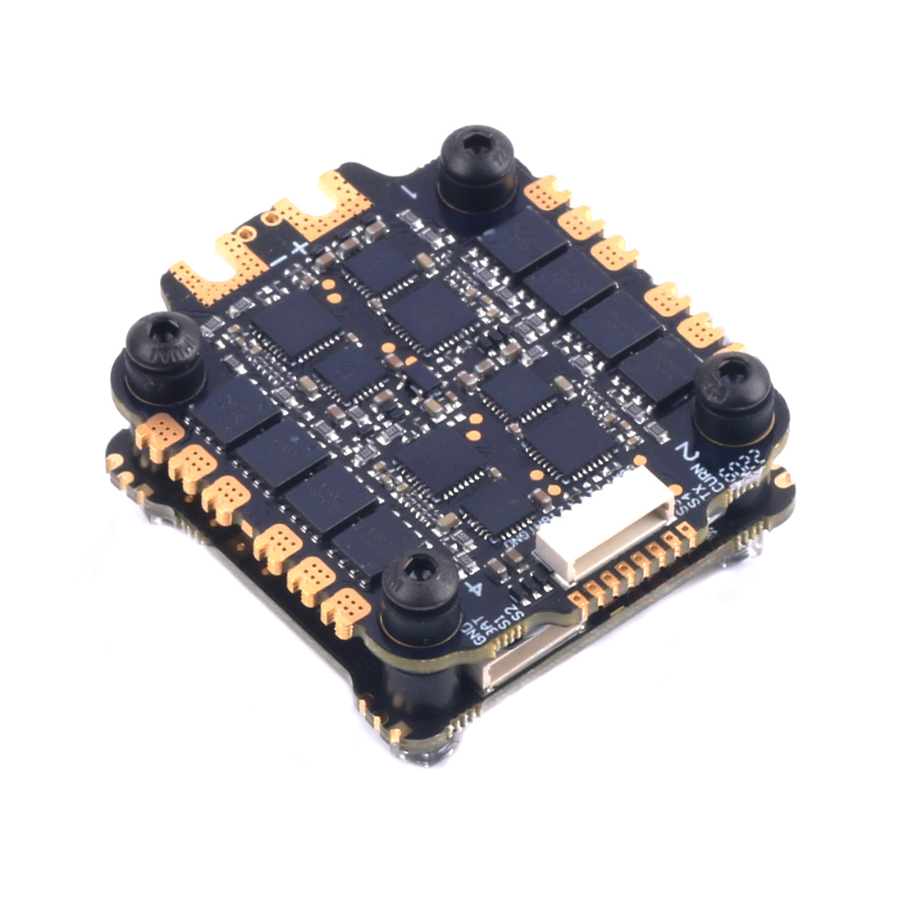

Skystars H7 HD FC + KO60 60A 4in1 ESC Stack

Overview:

The Skystars H7 HD flight controller and KO60 60A 128K 4in1 ESC stack. The H7 FC supports the DJI HD video system with a dedicated 10V output as well as traditional analogue video OSD. For analogue OSD the board features a dual channel analogue video switcher allowing two cameras to be connected. It features a high speed H743 processor and has 8 uarts for connecting peripherals. This version has a single BMI 270 gyro.

The Skystars KO60 4in1 60A ESC supports 3-6S and includes high quality Mosfets, It runs BLHeli_32 firmware and supports all recent modern ESC protocols like DShot 1200 etc. The ESC supports 128k PWM frequency.

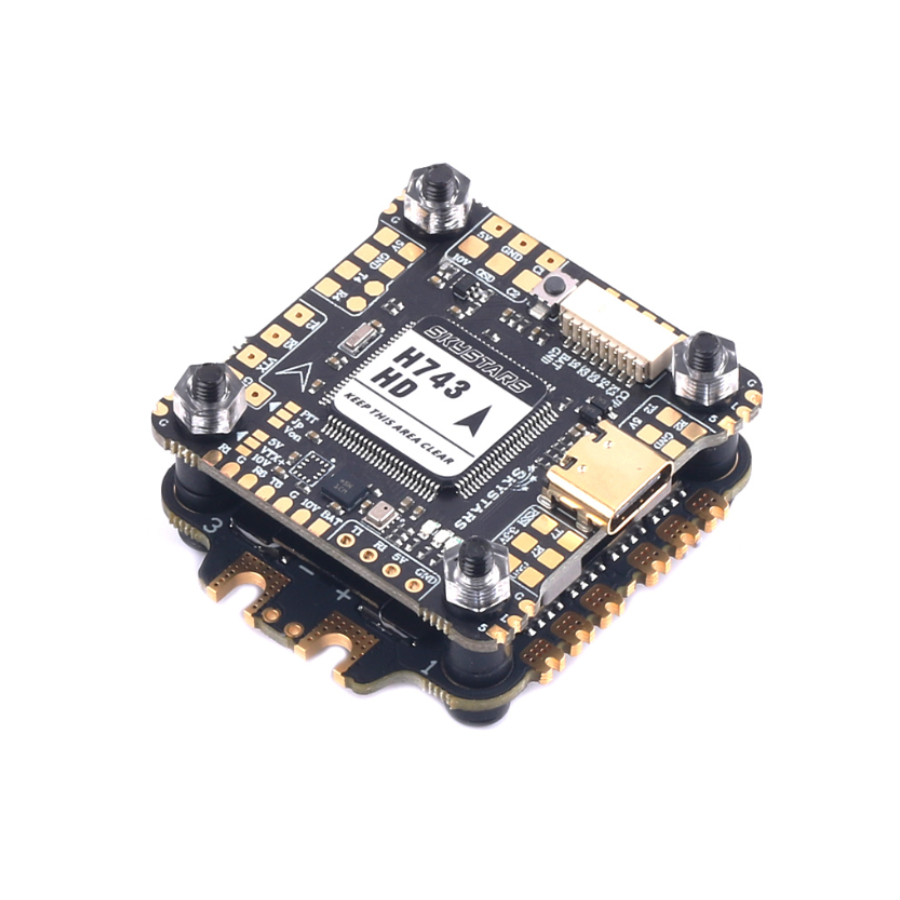

Skystars H743 Single Gyro FC Specifications
- MCU: STM32H743VIT6, 480MHz , 1MB RAM, 2MB Flash
- Gyro: BMI270
- Baro: BMP280
- OSD: AT7456E
- Blackbox: 16M
- 8x Uarts (1,2,3,4,6,7,8) with built-in inversion.
- 8x PWM outputs
- 1x I2C
- 3x LEDs for FC STATUS (Blue, Green) and 3.3V indicator(Red)
- USB Type-C(USB2.0)
- 2x JST-SH1.0_8pin connector (Gnd/Vbat/S1/S2/S3/S4/Rx3/Curr)
- 1x JST-SH1.0_6pin connector (R1/G/R6/T6/G/10V)
- Dual Camera Inputs switch
- VTX 10V/Vbat filtered power ON/OFF switch
- DJI FPV OSD is supported by any spare UART
- Mounting: 30.5 x 30.5mm
- Dimensions: 39.5 x 39.5 x 7.8 mm
- Weight: 10.1g

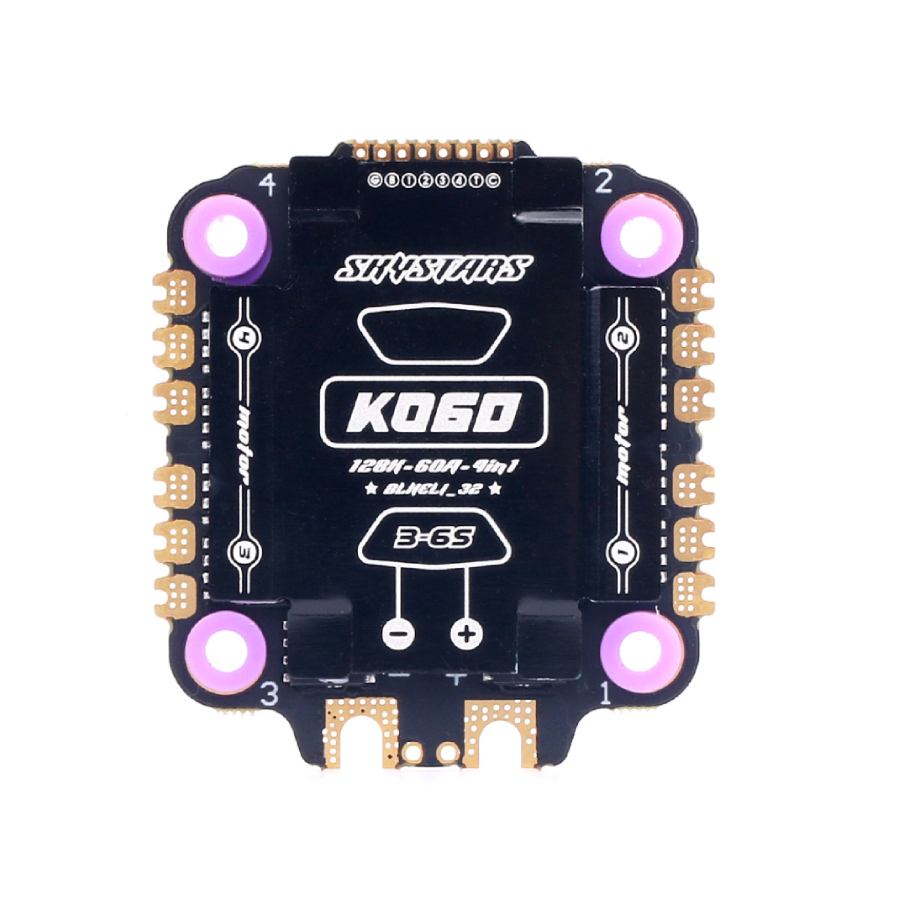

Skystars KO60 4in1 128K ESC Specifications
- Skystar KO60 ESC
- The installation size is 30.5mm x 30.5mm. The installation hole is M4.
- ESC weight: 14.1g
- ESC onboard current sensor.
- Continuous current: 60A
- Instantaneous current [5 seconds]: 65A
- Drive signal: 128K,DShot 600, Dshot 300, DShot 150 Oneshot125 / Multishot / PWM
- MCU: STM32F051 Operation frequency: 48MHz
- Firmware: BLheli-32
- MOS tube model is NVMFS5C430L

Includes:
- 1x Skystars H743 Single Gyro HD Flight Controller
- 1x Skystars KO60 60A 4in1 ESC
- Accessories
