Overview:
The SpeedyBee goggles receiver is a 5.8GHz analogue FPV goggles receiver module. The Goggles receiver includes a 128x64 OLED screen and includes dual receivers for real time signal analysis and fusion of video. This ensures optimal stability and clarity even in harsh signal environments.
The SpeedyBee Goggles module is compatible with most analogue FPV goggles that have the expansion bay such as FatShark and Skyzone and supports upto 48 channels over 6 bands.
The module includes a built in Model Finder which uses the received signal strength of your VTX to allow you to locate your model if you have crashed.
Features:
- 48 Channel Diversity Receiver
- Built in Model Finder

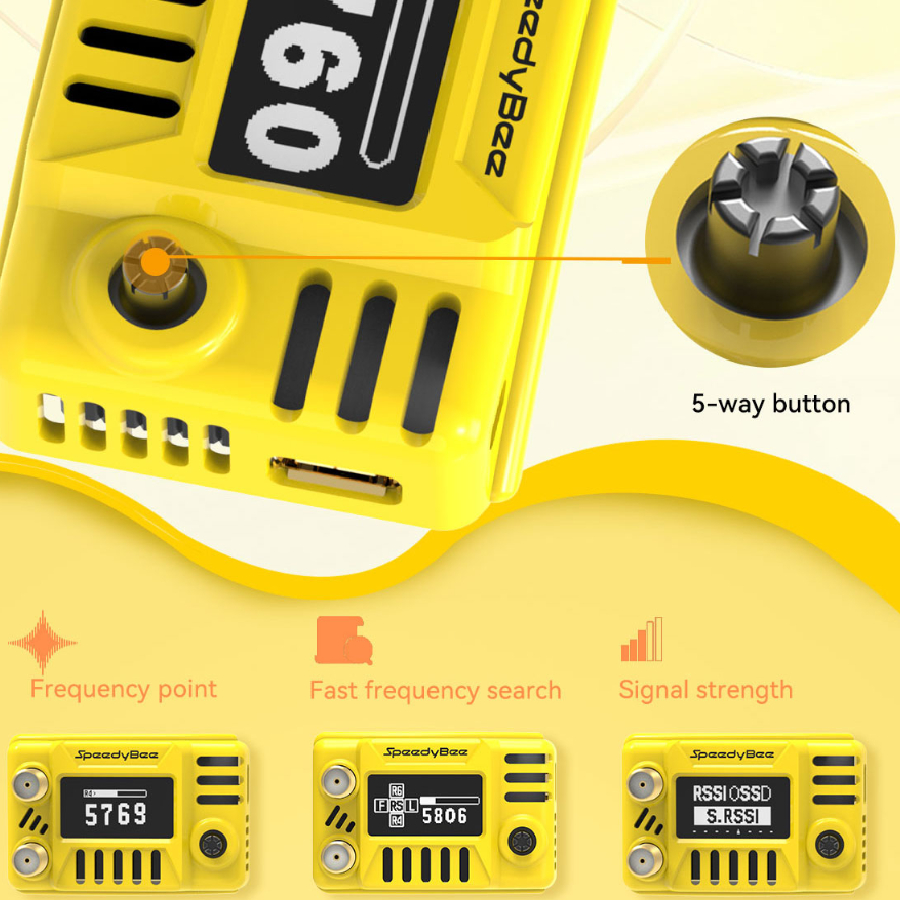

- Easily adjustable frequencies and parameters via the OLD screen and 5 way button
- Band scanner - enabling you to find a clear channel
Specifications:
- Operating Voltage: 5V
- Operating Current: 450mA@5V
- Supported FPV Goggles
- Fat Shark Dominator series: including V1,V2, V3,SE,HD1, HD2,HD3,HDO,HDO2.
- Orqa: Currently not compatible with the factory housing of Orqa goggles.
- HDZero: Supports HDZero FPV goggles analog conversion module.
- DJI: Supports DJI V1, V2 Goggles (an adapter board needs to be purchased separately when using DJI Goggles).
- Working Frequency: Supports A, B, E, F,R, L bands with 48 channels from 5.3GHz~5.9GHz
- Dimensional: 51x34x17.8mm
- Weight: 32.8g
Available Versions (See below for purchase options):
Goggles Receiver - Module only (** No antennas included **)
Goggles Receiver With Antenna Pack
- Goggles Receiver
- Maple Leaf circular polarised sandwich antenna (RHCP)
- Map Leaf circular polarised lollipop antenna (RHCP)
- Accesories (SMA adapters, knurled nuts etc)
Includes:
1x SpeedyBee 5.8GHz Goggles Receiver (See below for versions available)
