Overview:

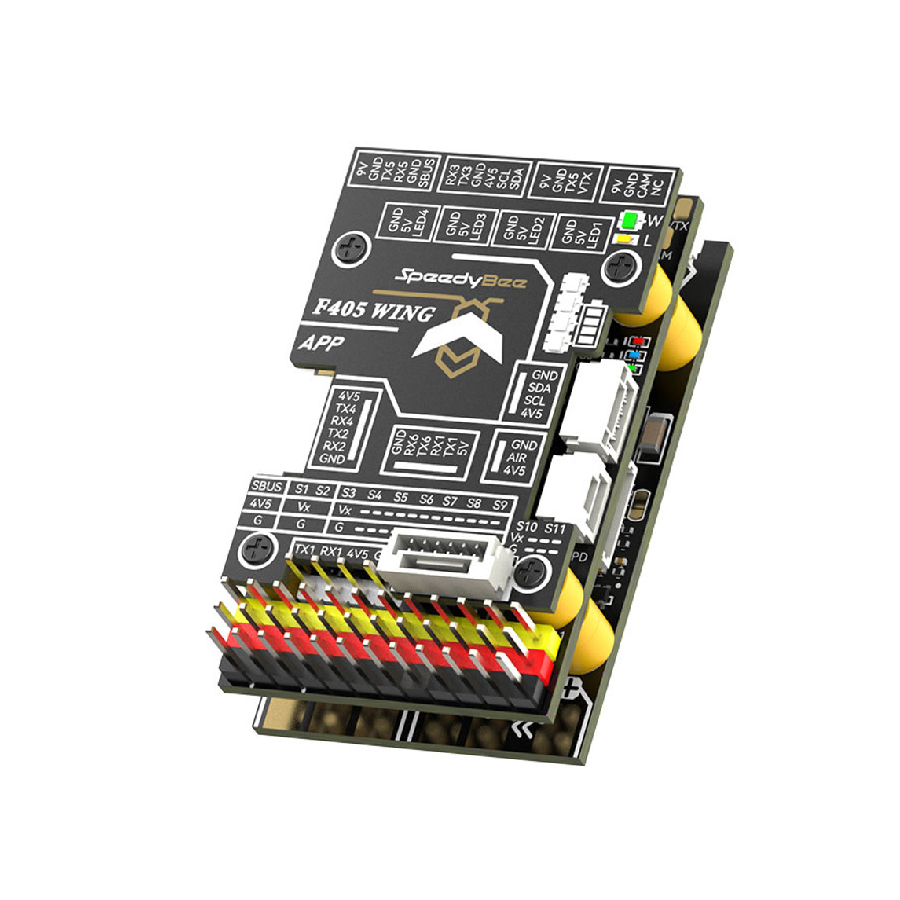

The SpeedyBee F405 Wing fixed wing flight controller features a wide array of features. The FC includes 3 high power BECs for FC, VTX and Servo power as well as a wide 7-36V input (2-6S LiPo). The board includes wireless programming as standard via the SpeedyBee app and a handy onboard LiPo battery checker LED display. Many types of fixed wing plane are supported including VTOLs. The flight controller supports upto 11 PWM outputs for motor and servo control and 6 uarts for connection to accessories like GPS etc.
SpeedyBee F405 WING FC board:
- MCU STM32F405,168MHz,1MB Flash
- IMU(Gyro&Accelerometer) ICM-42688-P
- Barometer: SPL006-001
- OSD Chip: AT7456E
- Blackbox: MicroSD Card Slot
- UART: 6 sets(USART1, USART2, USART3, UART4, UART5, UART6(Dedicated for Wireless board Telemetry connection))
- I2C: 1x Used for magnetometer, digital airspeed sensor
- ADC: 4x (VBAT, Current, RSSI, Analog AirSpeed)
- PWM: 12x (11+1“LED”pad)
- ELRS/CRSF receiver: Supported (UART1)
- SBUS: Built in inverter for SBUS input (UART2-RX)
- LED: 3x LEDs for FC STATUS (Blue, Green) and 3.3V indicator(Red) 1x RGB
- RSSI: Supported,Named as RS .
- Supported FC Firmware: INAV:SpeedyBeeF405WING(default)ArduPilot: SpeedyBeeF405WING
SpeedyBee F405 WING PDB board:
- Input voltage range: 7~36V (2~6S LiPo)
- Battery Voltage Sensor: Connect to FC board VBAT, 1K:10K (Scale 1100 in iNav, BATT_VOLT_MULT 11.0 in ArduPilot)
- Battery Current Sensor: 90A continuous, 215A peak Connect to FC board Current (Scale 195 in iNav, 50 A/V in ArduPilot)
- TVS Protective diode: Yes
- FC BEC output: Output 5.2V +/- 0.1V DC Continuous current 2.4 Amps, 3A Peak Designed for FC, Receiver, GPS module, AirSpeed module, Telemetry module, WS2812 LED_Strip
- VTX BEC output: Output 9V +/- 0.1V DC Continuous current 1.8 Amps, 2.3A Peak Voltage adjustable, 9V Default, 12V or 5V via jumper Designed for Analog Video Transmitter,Digital Video Transmitter, Camera.
- Servo BEC output: Output 4.9V +/- 0.1V DC Continuous current 4.5 Amps, 5.5A Peak Voltage adjustable, 4.9V Default, 6V or 7.2V via jumper Designed for Servos.
SpeedyBee F405 WING Wireless board:
- Wireless Configuration (long press BOOT button for 6 seconds to switch modes) BLE mode, connect to Speedybee APP
Wi-Fi mode, connect to QGroundControl APP, Speedybee APP, MissionPlanner, etc.
Classic Bluetooth SPP mode, connect to QGroundControl APP, MissionPlanner
- LED strip controller (short press BOOT button to switch effects, long press 2 seconds to switch modes) 4x - WS2812 LED strip connectors, adjustable colors and flashing modes
Max 5.2V 1.3A, supports around 70pcs 5050 WS2812 LED beads
- On-board battery level indicator 4x RGB indicator LED for battery level display by number of lights
Includes:
1x SpeedyBee F405 WING Flight Controller
Accessories
