T-Motor BPP-4D Pro F3P 1850KV Combo Fixed Wing

Overview:

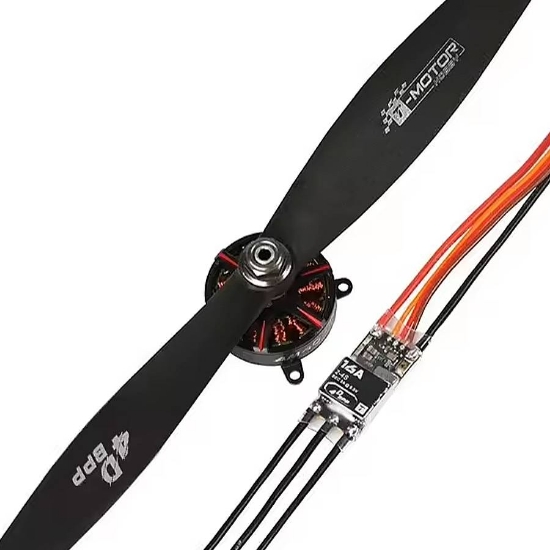

The T-Motor BPP-4D Pro pack is a combo pack of motor, esc and pop for F3P or indoor acrobatic flying. This pack includes a 1850KV AM40 4D motor with AM 16A ESC and T8542 4D prop.

Features:

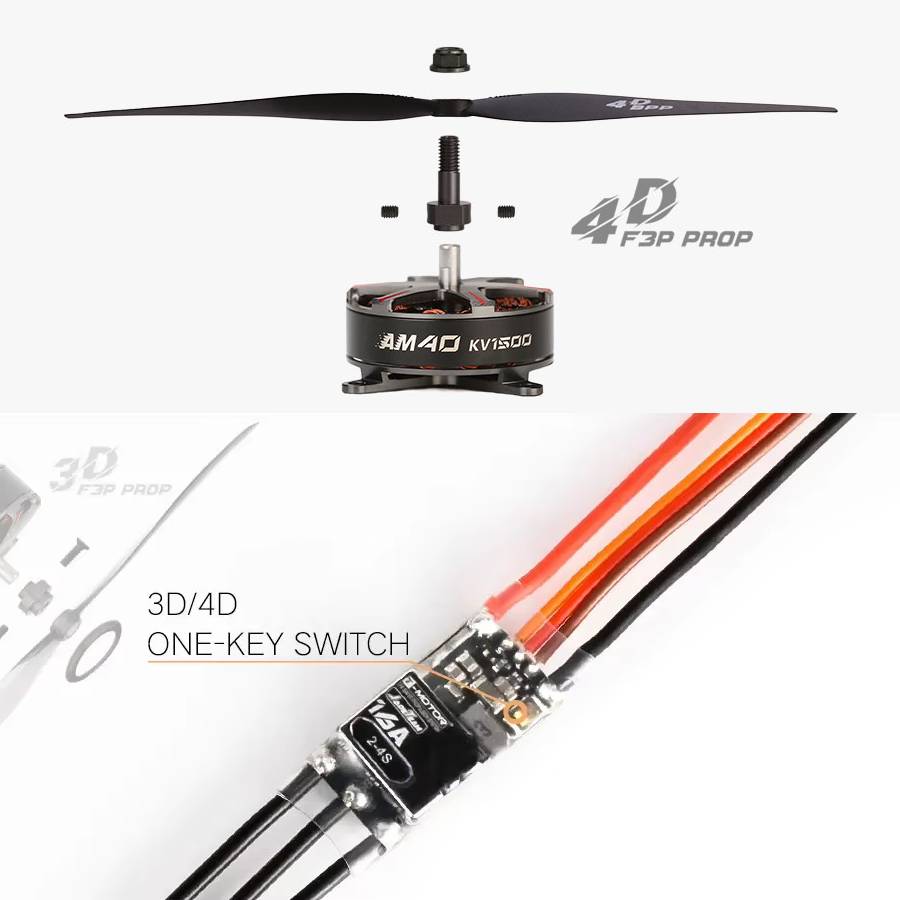

- BPP-4D Combo includes an AM40 1850KV motor, AM16A ESC and T8542 4D propeller, which is specialized for F3P.
- Light and robust, can easily switch from 3D to 4D when installing 4D prop adapter.
- 3D/4D one-key switch.
- Free rotation forward/reverse.
- Excellent and delicate control.

Motor Specifications:

- KV: 1850KV
- Configuration: 12N14P
- Shaft Diameter: 4mm
- Internal Resistance: 138.5mΩ
- Motor Dimensions (Dia.*Len): Φ28x18.7mm
- Weight with wires(g): 22.5g
- ldle current@10v(A): 0.95A
- No.of Cells(Lipo): 2-3S
- Cable length: 40mm

AM16A ESC Specifications:

- Item Name: AM 16A 3D/4D
- Continuous Current: 16A
- Instantaneous Current (15s): 25A
- Number of Lithium Batteries: 2-4S
- BEC: Yes
- Weight: 8.5g
- Size: 12x24x6.2mm
- Appications: Suitable for 120g-320g RC Fixed Wing

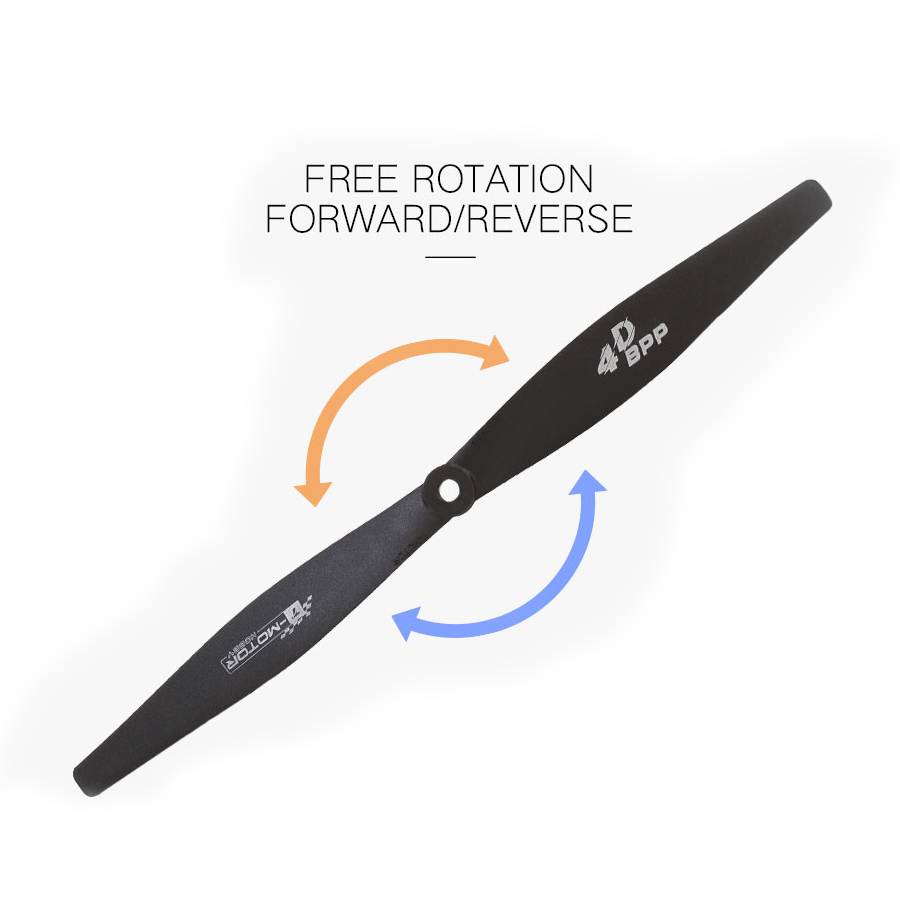

T8542 4D Propeller Specifications:

- Item Name: T8542 4D Propeller
- Weight: 4.9g

Includes:

- T-Motor BPP-4D F3P 1850KV Combo Fixed Wing - (AM40 1850KV motor, AM16A ESC and T8542 4D Prop)
