Overview:

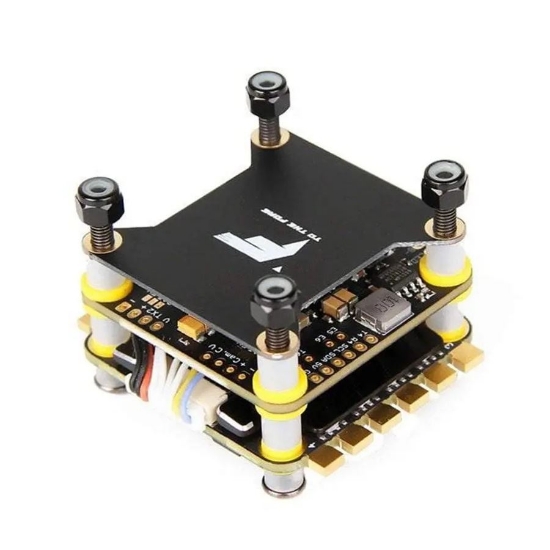

The T-Motor F7 HD flight controller + F55A 4in1 ESC / Stack combines two very good components together in one simple and easy to install package. The T-Motors F7 flight controller is a high performance FC with a logical layout and offers seamless integration with the F55A ESC. The F55A Pro II features an all new heatsink design alongside integrated LEDs and an increased BEC current (10V@2A). This 4in1 ESC is fully capable of pushing 6s with 75A bursts and a sustained 55A current draw.
** This stack is just for the DJI HD system as the flight controller doesn't provide an analogue OSD on board. **

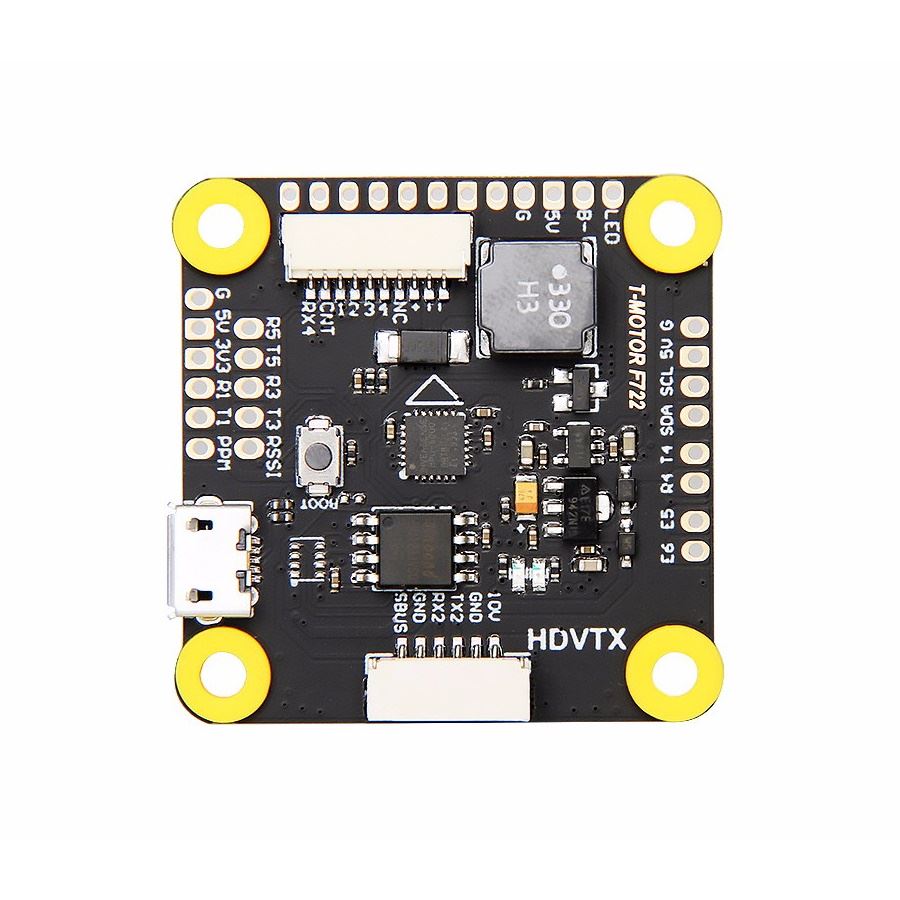

F7 HD FC Specifications:
- MCU: STMF722RET6
- Gyro: ICM270
- Memory: 16M
- Input Voltage: 12v-25-2v (3-6S)
- BEC: 5V/2A 10A/2A DJI HD system
- Dimensions: 37mm x 37mm
- Mounting Holes: 30.5mm x 30.5mm
- Weight: 8.4g
- Firmware Target: TMOTORF7 (Betaflight)

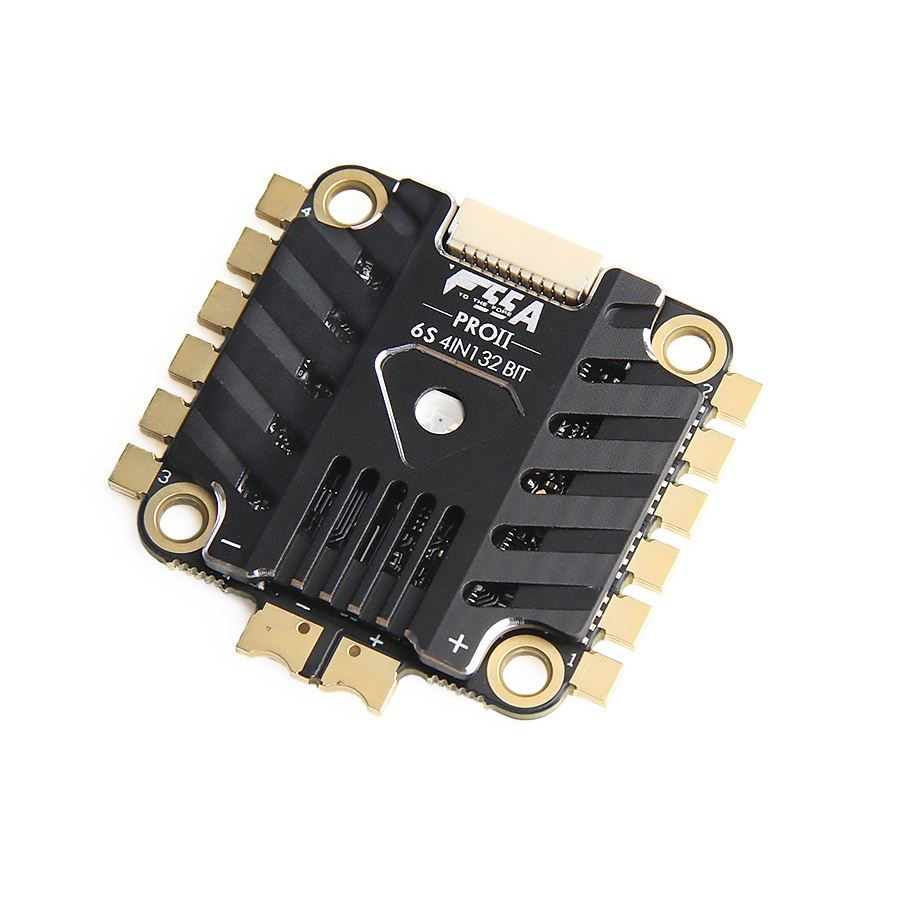

F55 Pro II 4in1 ESC Features:
- Continuous Current: 4x55A
- Burst Current: 4x75A
- BEC Output: 10V @ 2.0A
- Size: 45x41x7.3mm
- Weight: 17.5g (Including heatsink)
- BLHeli_32 32Bit
- Supports: DSHOT150/300/600
Includes:
- T-Motor F7 HD Flight Controller
- T-Motor F55A Pro II ESC
- Accessories
