Overview:

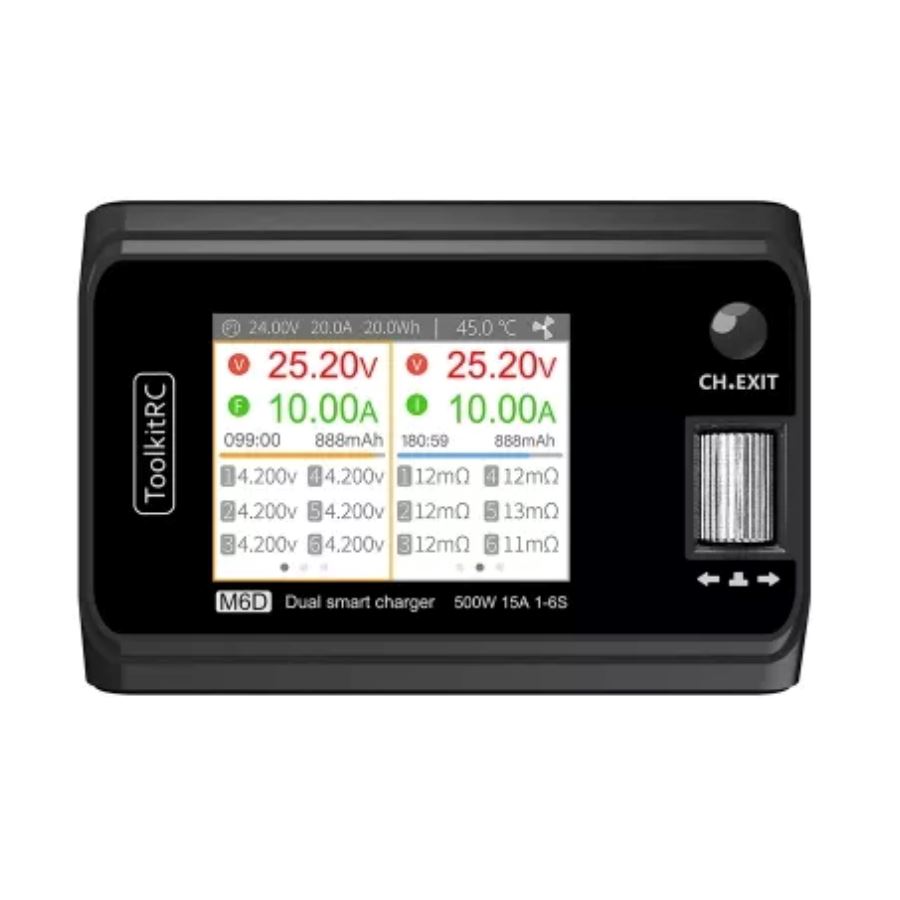

The ToolkitRC M6D is a dual channel (two batteries at once) smart charger that is powered from DC so can be used as a field charger. In DC mode the charger operates as two individual 250W channels or in syncronous mode allowing two channels to be linked as one for a massive 500W output (15A max). The M6D includes a 2.4" 320x240 IPS panel and metal dial wheel.
The M6D also features Smart battery support for the Mavic2, MavicS, Phantom and Inspire.
Specifications (General):
- Product Size: 98x68x35 mm
- Product Weight: 200g
- LCD: IPS 2.4inch LCD 320x240 pixel
Specifications (Charger):
- Input voltage: 7.0-28.0V MAX 30A
- Battery type: (Lipo LiHV LiFe Lion LTO) 1-6S / (NiMh) 1-16S (Pb) 1-10S
- Balance current: 800mA 2-6S
- Charging power: 500W MAX 25A SYNC / 250W MAX 15A *2 ASYC
- Discharge power: 500W MAX 15A Recycle / 15W 3A *2 (Normal mode)
- USB: 2.1A 5.0V
- Firmware Upgrade via USB3.0
Included:
- ToolkitRC M6D Dual DC Smart Charger
IMPORTANT: Never charge batteries unattended! Constant supervision is required as batteries can be dangerous when mishandled. We recommend charging your batteries inside a protective charging bag.
