Overview:

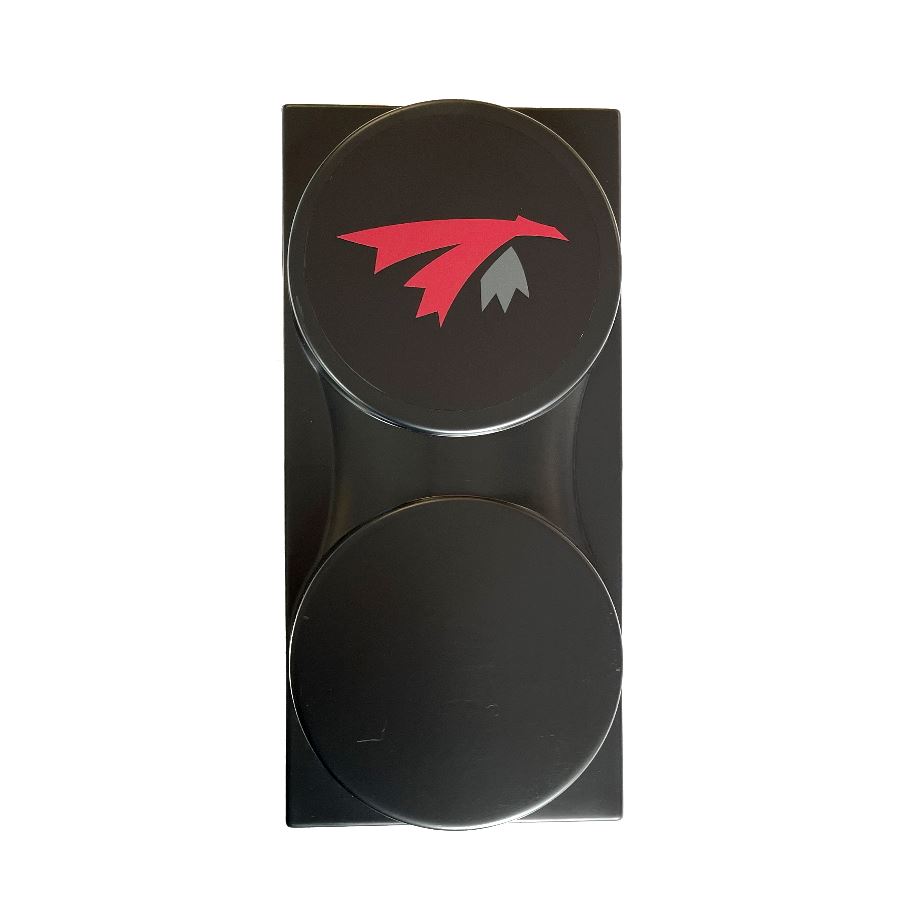

By pairing two of our famous TrueRC X-AIR 1.3GHz antennas you get more gain AND wider beam! Of course, there's a compromise which is reduced vertical beam width, but good FPV flying doesn't happen up high :) A novel approach was taken to match the two antennas together and lose virtually no RF energy in the process. The result is an unmatched efficiency. Each unit is tested on professional antennas tester (agilent) for SWR, gain and circularity.
Please note, physically this is a large antenna. A 1/4-20 mounting point in the back, make it super easy to attach to your ground station.
Specifications:
Frequency: 1.200-1.360GHz
Gain: 13 dBic
Polarization: RHCP
Beam-width Horizontal*: 150deg
Beam-width Vertical*: 62deg
Hor. beam @-3dB**: 74deg.
Vert. beam @-3dB**: 34deg
Connector: SMA male
Dimension: 330mm x 158mm x 40mm
Mounting: Standard 1/4-20 thread
Weight: 298g
*Coverage where reception is at least equivalent to an omni.
**Coverage where at least 70% of the max range is obtained.
Package Contents:
- 1x TrueRC X2-Air 1.3GH
- 1x Low loss semi flexible extension
