Overview:
The VIFLY ToothStor 4 Port 2S LiPo Battery Charger is a specialised charging solution designed for FPV drone enthusiasts. It offers the convenience of charging up to four 2S LiPo batteries simultaneously, with a maximum charging current of 1.5A per port. The charger is compatible with both XH2.54 3Pin and BT3.0 battery connectors, catering to a broad range of 2S batteries.
Featuring an intuitive interface with a colourful LCD screen, the ToothStor provides clear and concise information on the charging status. Its efficient heat dissipation system, combining a fan with a large heat sink, ensures optimal performance and longevity of the unit.
The charger supports multiple power input options, including XT60 and Type-C with PD3.0, and boasts a convenient memory function that recalls the last used settings. Additionally, it is equipped with a buzzer notification system to alert users when a charging cycle is complete, which can be manually disabled if desired.
4 Port 2S Balance Charger with Storage Mode - You can balance charge four 2S batteries at the same time. And they are 4 independent charging channels, not necessary to ensure the batteries are all the same voltage or the same size. In addition to charging the battery to full voltage, you can charge or discharge it to storage voltage for long time storage.
Colorful LCD Screen, Intuitive Interface - VIFLY ToothStor installs high quality LCD screen, the charging status is displayed clearly and the intuitive interface makes the operation very simple.
Support XH2.54 and BT3.0 Batteries - VIFLY ToothStor pre-soldered four XH2.54 and BT3.0 connectors, so it can work with any general XT30 2S battery with 3Pin XH2.54 Balance Plug or BetaFPV BT3.0 battery, but don’t put the two batteries in the same port.

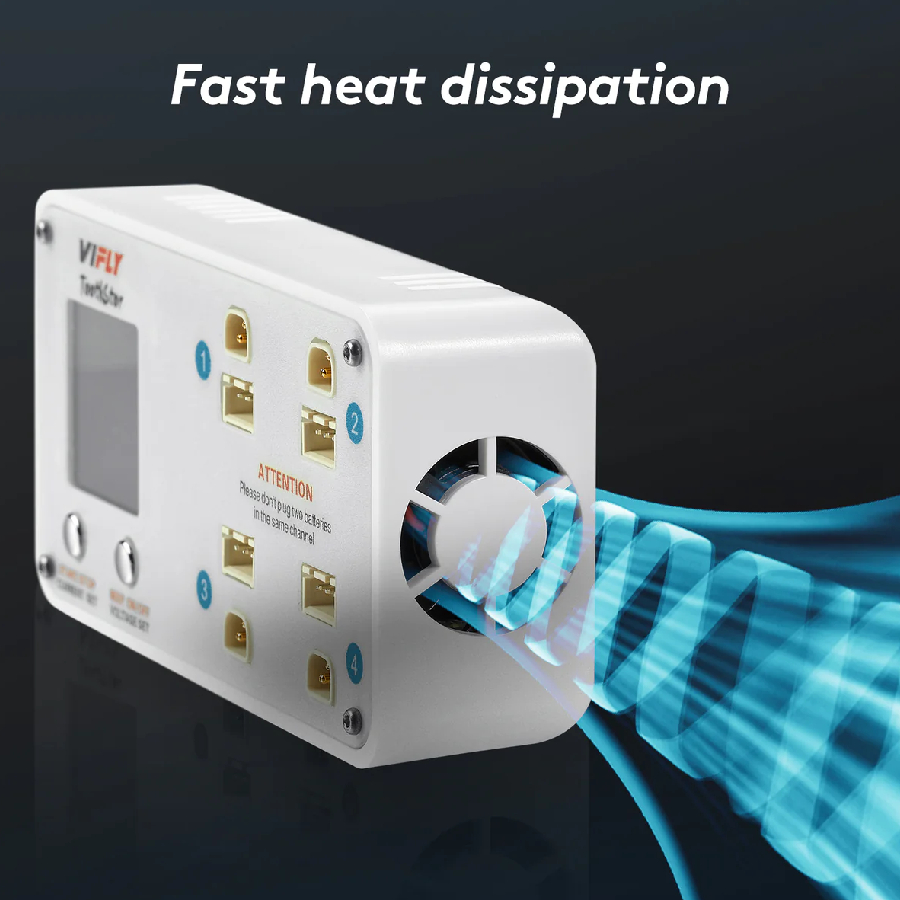

Strong Heat Dissipation Capability - The fan and big heat sink would effectively dissipate the heat to prevent the unit from overheating. This greatly improves the efficiency and speed of the discharging.
Multiple Power Input - It supports Type-C, XT60 and DC power input. Type-C supports PD3.0 protocol that requests the input power must be higher than 65W.
Memory Function - VIFLY ToothStor had the memory feature of remembering last time settings, no need to set the charge current every time you turn it on.
Buzzer Indication - VIFLY ToothStor added the buzzer to beep when one charging circle finished, if you don’t like beeping, you can turn the buzzer off manually.
Specifications:
- Dimensions: 109*56*30mm
- Weight: 142g
- Input connector: XT60, DC(5.5*2.1mm), USB-C(PD3.0)
- Input voltage range: 10V-26V
- Minimum input power: 65W
- Max charging current: 1.5A/port
- Support battery connector: XH2.54 3Pin & BT3.0
- Battery type: LiHV / LiPo
- Storage voltage: 3.80V/Cell & 3.85V/Cell
- Max discharge current: 0.2A/port
- Balance Current: 0.2A
Available Versions (See below for purchase options):
- VIFLY ToothStor 4 - White
Includes:
1x VIFLY VIFLY ToothStor 4 Battery Charger
Battery Safety: Please take LiPo battery safety seriously, please see our safety sheet.
